7806A Series
Manufacturer: Belden Inc.
Beta
⌘K

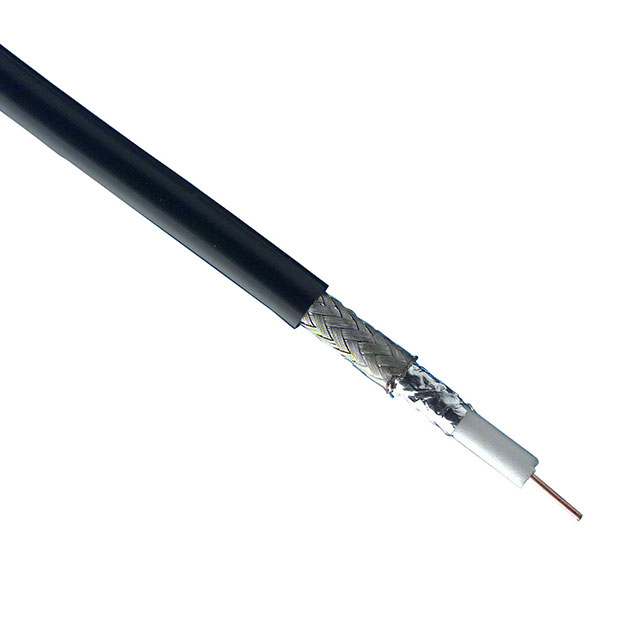

CABLE COAX RG-58 19 AWG 100'
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Shield Material | Conductor Material | Dielectric Material | Shield Coverage | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Impedance | Jacket Color | Cable Type | Cable Group | Length | Length | Wire Gauge | Conductor Strand | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 80 °C | -40 C | Aluminum Copper Tinned | Copper Bare | Foam High Density Polyethylene (FHDPE) | 90 % 100 % | 77 | 0.11 in | 2.79 mm | Braid Foil | 0.195 " | 4.95 mm | 50 ft 500 ft | 15.24 m 152.4 m | 50 Ohms | Black | Coaxial | RG-58 | 100 ' | 30.48 m | 19 AWG | Solid | Polyethylene (PE) |
