6EP34378 Series

Manufacturer: Siemens

Catalog

AC/DC DIN RAIL SUPPLY QUAD 24V

Part	Voltage - Output 1	Current - Output (Max) [custom]	Voltage - Output 2	Input Type	Voltage - Output 4	Number of Outputs	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Applications	Voltage - Output 3	Features	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Current - Output (Max) [Max]	Power (Watts)

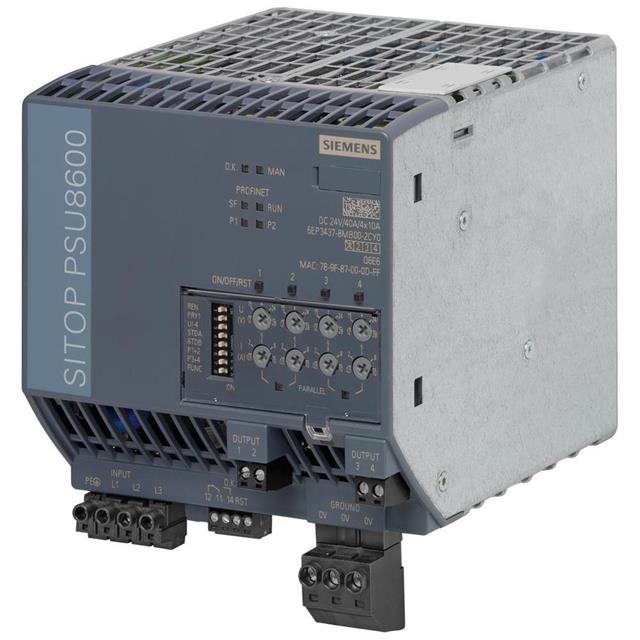

Siemens 6EP34378MB002CP0	24 V	10 A	24 V	AC	24 V	4	500 VAC	400 VAC	ITE (Commercial)	24 V

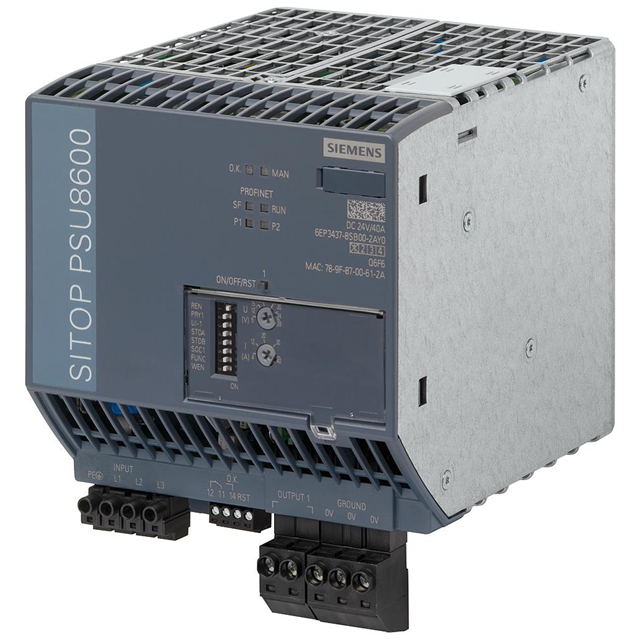

Siemens 6EP34378SB002AY0	24 V			AC		1	575 VAC	320 VAC	Industrial ITE (Commercial)		Adjustable Output IP20	60950-1; UL 508	-25 °C	60 °C	cCSAus CE CSA cULus UL	125 mm	5.91 in	150 mm	125 mm	4.92 in	4.92 in	93 %	40 A
Siemens 6EP34378MB102CY0	24 V	10 A	24 V	AC	24 V	4	575 VAC	320 VAC	Industrial ITE (Commercial)	24 V	Adjustable Output	60950-1; UL 508	-25 °C	60 °C	cCSAus CE CSA cULus EAC	125 mm	5.91 in	150 mm	125 mm	4.92 in	4.92 in	93 %		960 W
