3UG4512 Series

Manufacturer: Siemens

Catalog

VOLT. MON REL,1CO,160-690VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Trip Range [Max]	Trip Range [Min]	Mounting Type	Output Type	Contact Rating @ Voltage	Circuit
Siemens 3UG45121AR20	-25 °C	60 °C	Phase Loss Phase Sequence	690 VAC	160 VAC	690 V AC	160 V AC	DIN Rail	Relay	3 A 400 VAC	SPDT (1 Form C)

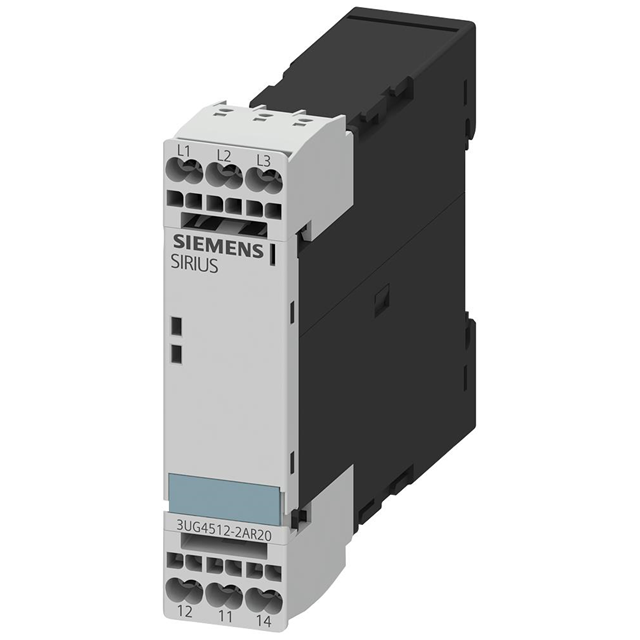

Siemens 3UG45122AR20	-25 °C	60 °C	Phase Loss Phase Sequence	690 VAC	160 VAC	690 V AC	160 V AC	DIN Rail	Relay	3 A 400 VAC	SPDT (1 Form C)

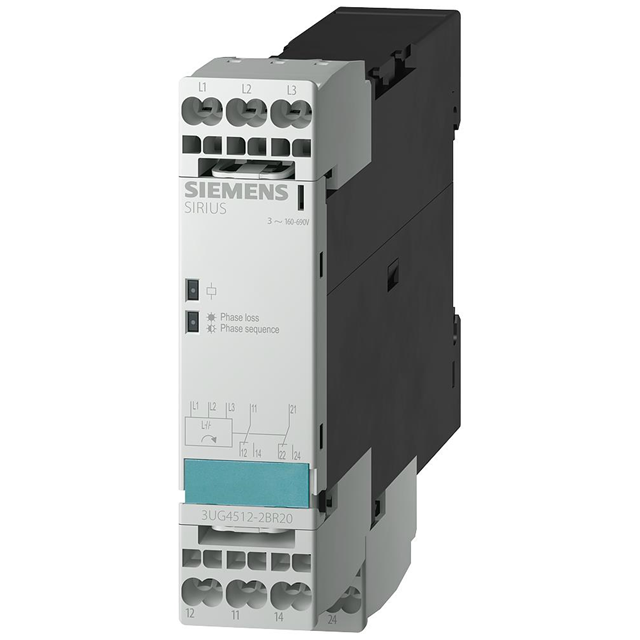

Siemens 3UG45122BR20	-25 °C	60 °C	Phase Loss Phase Sequence	690 VAC	160 VAC	690 V AC	160 V AC	DIN Rail	Relay	3 A 400 VAC	DPDT (2 Form C)
