M20-996 Series
Manufacturer: Harwin Inc.
Beta
⌘K

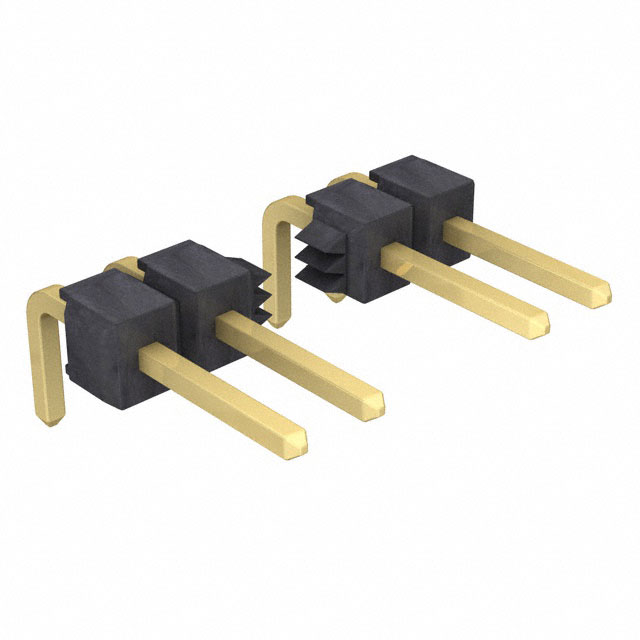

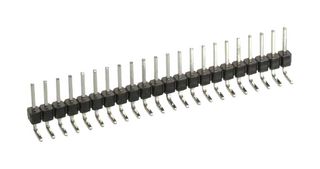

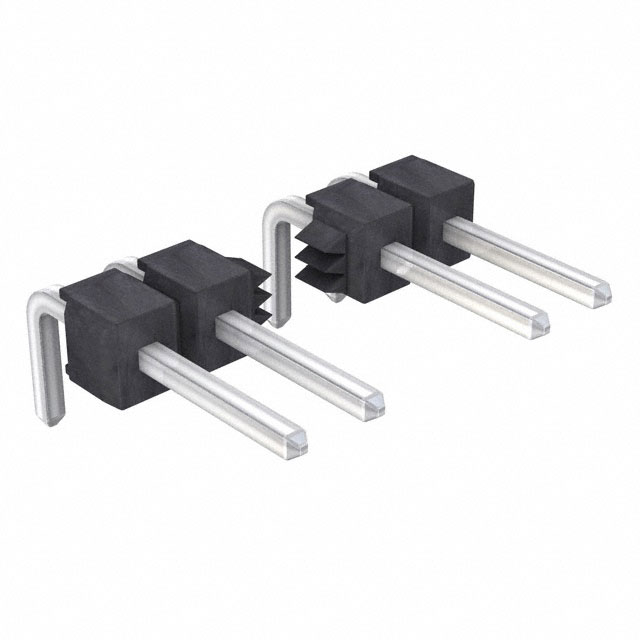

CONNECTOR, HEADER, 5POS, 2.54MM, 1ROW
| Part | Termination | Shrouding | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Insulation Color | Contact Shape | Mounting Type | Fastening Type | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Finish - Mating | Contact Type | Current Rating (Amps) | Style | Connector Type | Material Flammability Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Contact Length - Mating [x] | Contact Length - Mating [x] | Number of Positions | Number of Rows | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Solder | Unshrouded | 0.118 in | 3 mm | All | Black | Square | Right Angle Through Hole | Push-Pull | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Gold | Male Pin | 3 A | Board to Board Cable | Header Cuttable | UL94 V-0 | Brass | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | 0.24 in | 6.1 mm | 5 | 1 | |
 Harwin Inc. | Solder | Unshrouded | 0.118 in | 3 mm | All | Black | Square | Right Angle Through Hole | Push-Pull | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Gold | Male Pin | 3 A | Board to Board Cable | Header Cuttable | UL94 V-0 | Brass | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | 0.24 in | 6.1 mm | 36 | 1 | |
 Harwin Inc. | Solder | Unshrouded | 0.118 in | 3 mm | All | Black | Square | Right Angle Through Hole | Push-Pull | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Gold | Male Pin | 3 A | Board to Board Cable | Header Cuttable | UL94 V-0 | Brass | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | 0.24 in | 6.1 mm | 6 | 1 | |
 Harwin Inc. | Solder | Unshrouded | 0.118 in | 3 mm | All | Black | Square | Right Angle Through Hole | Push-Pull | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Male Pin | 3 A | Board to Board Cable | Header Cuttable | UL94 V-0 | Brass | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | 0.24 in | 6.1 mm | 20 | 1 | Tin | |
Harwin Inc. | Solder | Unshrouded | 0.118 in | 3 mm | All | Black | Square | Right Angle Through Hole | Push-Pull | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Male Pin | 3 A | Board to Board Cable | Header Cuttable | UL94 V-0 | Brass | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | 0.24 in | 6.1 mm | 12 | 1 | Tin | |
Harwin Inc. | Solder | Unshrouded | 0.118 in | 3 mm | All | Black | Square | Right Angle Through Hole | Push-Pull | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Male Pin | 3 A | Board to Board Cable | Header Cuttable | UL94 V-0 | Brass | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | 0.24 in | 6.1 mm | 8 | 1 | Tin | |
Harwin Inc. | Solder | Unshrouded | 0.118 in | 3 mm | All | Black | Square | Right Angle Through Hole | Push-Pull | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Gold | Male Pin | 3 A | Board to Board Cable | Header Cuttable | UL94 V-0 | Brass | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | 0.24 in | 6.1 mm | 10 | 1 | |
Harwin Inc. | Solder | Unshrouded | 0.118 in | 3 mm | All | Black | Square | Right Angle Through Hole | Push-Pull | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Gold | Male Pin | 3 A | Board to Board Cable | Header Cuttable | UL94 V-0 | Brass | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | 0.24 in | 6.1 mm | 12 | 1 | |
Harwin Inc. | Solder | Unshrouded | 0.118 in | 3 mm | All | Black | Square | Right Angle Through Hole | Push-Pull | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Male Pin | 3 A | Board to Board Cable | Header Cuttable | UL94 V-0 | Brass | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | 0.24 in | 6.1 mm | 9 | 1 | Tin |
