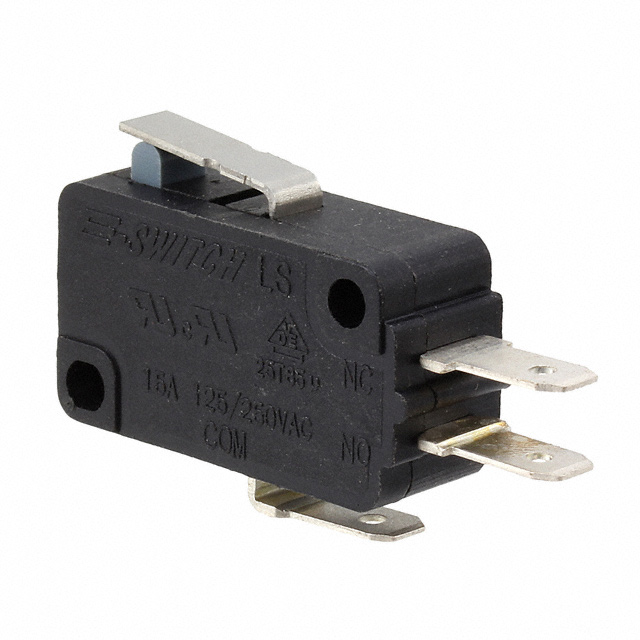

LS0851501 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SNAP ACTION SPDT 15A 125V
| Part | Actuator Type | Pretravel | Pretravel | Termination Style | Voltage Rating - AC | Mechanical Life | Current Rating (Amps) | Circuit | Switch Function | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Mounting Type | Operating Position | Operating Position | Release Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Lever Straight | 2 mm | 0.08 in | Quick Connect - 0.250" (6.3mm) | 125 V | 1000000 Cycles | 15 A | SPDT | On-Mom | 160 gf | 85 °C | -25 °C | 50000 Cycles | Chassis Mount | 15.3 mm | 0.602 in | |
 E-Switch | Lever Straight | 2 mm | 0.08 in | Quick Connect | 125 V | 1000000 Cycles | 15 A | SPDT | On-Mom | 100 gf | 85 °C | -25 °C | 50000 Cycles | Chassis Mount | 15.3 mm | 0.602 in | 30 gf |
