ADV-161 Series
Manufacturer: European Thermodynamics Ltd
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

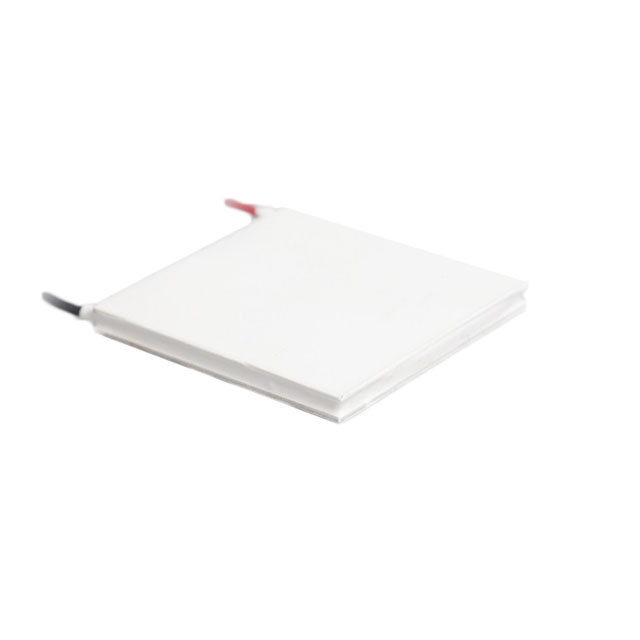

TE MODULE,161 COUPLES,SILICONE
| Part | Voltage - Max | Size / Dimension Width | Size / Dimension Shape | Size / Dimension Length | Operating Temperature | Delta Tmax | Features | Type | Number of Stages | Height | Maximum Power Dissipation (Qmax) | Current - Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 European Thermodynamics Ltd | 19.4 V | 40 mm | Square | 40 mm | 80 °C | 65 °C | Lead Wires Sealed Silicone | TEC (Thermoelectric Cooler) | 1 | 3.6 mm | 54.7 W | 5 A |
