68015 Series

Catalog

CONN HEADER R/A 14POS 2.54MM

Part	Termination	Material Flammability Rating	Contact Finish - Mating	Number of Positions Loaded	Shrouding	Connector Type	Fastening Type	Contact Type	Number of Rows	Contact Material	Current Rating (Amps)	Contact Shape	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post
Amphenol ICC (FCI) 68015-114HLF	Solder	UL94 V-0	Gold or Gold GXT™	All	Unshrouded	Header	Push-Pull	Male Pin	1	Phosphor Bronze	3 A	Square	0.1 in	2.54 mm	Black	0.09 "	2.29 mm	0.095 in	2.41 mm	30 Áin	0.76 Ám	Through Hole Right Angle	14	0.23 in	5.84 mm
Amphenol ICC (FCI) 68015-210HLF	Solder	UL94 V-0	Gold or Gold GXT™	All	Unshrouded	Header	Push-Pull	Male Pin	1	Phosphor Bronze	3 A	Square	0.1 in	2.54 mm	Black	0.09 "	2.29 mm	0.095 in	2.41 mm	15 µin	0.38 µm	Through Hole Right Angle	10	0.23 in	5.84 mm
Amphenol ICC (FCI) 68015-211HTLF	Solder	UL94 V-0	Gold or Gold GXT™	All	Unshrouded	Header	Push-Pull	Male Pin	1	Phosphor Bronze	3 A	Square	0.1 in	2.54 mm	Black	0.09 "	2.29 mm	0.095 in	2.41 mm	15 µin	0.38 µm	Through Hole Right Angle	11	0.23 in	5.84 mm	125 °C	-65 ░C
Amphenol ICC (FCI) 68015-121HLF	Solder	UL94 V-0	Gold or Gold GXT™	All	Unshrouded	Header	Push-Pull	Male Pin	1	Phosphor Bronze	3 A	Square	0.1 in	2.54 mm	Black	0.09 "	2.29 mm	0.095 in	2.41 mm	30 Áin	0.76 Ám	Through Hole Right Angle	21	0.23 in	5.84 mm
Amphenol ICC (FCI) 68015-234HLF	Solder	UL94 V-0	Gold or Gold GXT™	All	Unshrouded	Header	Push-Pull	Male Pin	1	Phosphor Bronze	3 A	Square	0.1 in	2.54 mm	Black	0.09 "	2.29 mm	0.095 in	2.41 mm	15 µin	0.38 µm	Through Hole Right Angle	34	0.23 in	5.84 mm

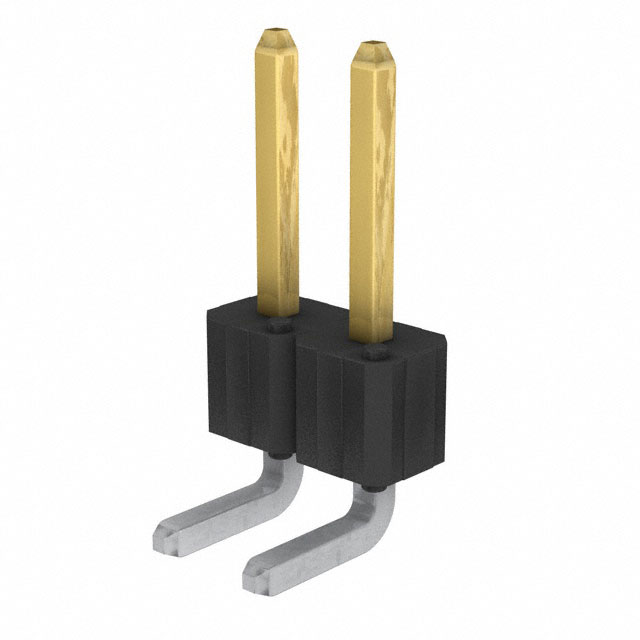

Amphenol ICC (FCI) 68015-102HLF	Solder	UL94 V-0	Gold or Gold GXT™	All	Unshrouded	Header	Push-Pull	Male Pin	1	Phosphor Bronze	3 A	Square	0.1 in	2.54 mm	Black	0.09 "	2.29 mm	0.095 in	2.41 mm	30 Áin	0.76 Ám	Through Hole Right Angle	2	0.23 in	5.84 mm	125 °C	-65 ░C
Amphenol ICC (FCI) 68015-607	Solder	UL94 V-0	Gold or Gold GXT™	All	Unshrouded	Header	Push-Pull	Male Pin	1	Phosphor Bronze	3 A	Square	0.1 in	2.54 mm	Black	0.09 "	2.29 mm	0.095 in	2.41 mm	30 Áin	0.76 Ám	Through Hole Right Angle	7	0.23 in	5.84 mm

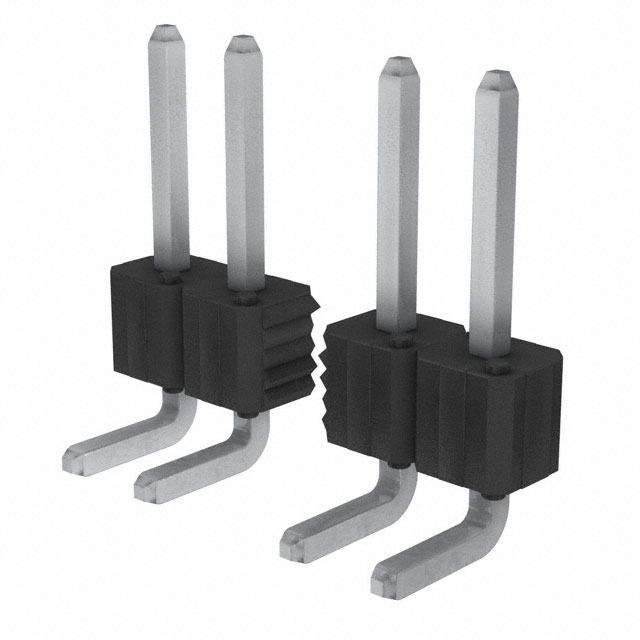

Amphenol ICC (FCI) 68015-430HLF	Solder	UL94 V-0		All	Unshrouded	Header	Push-Pull	Male Pin	1	Phosphor Bronze	3 A	Square	0.1 in	2.54 mm	Black	0.09 "	2.29 mm	0.095 in	2.41 mm	100 çin	2.54 çm	Through Hole Right Angle	30	0.23 in	5.84 mm			Tin
Amphenol ICC (FCI) 68015-405HLF	Solder	UL94 V-0		All	Unshrouded	Header	Push-Pull	Male Pin	1	Phosphor Bronze	3 A	Square	0.1 in	2.54 mm	Black	0.09 "	2.29 mm	0.095 in	2.41 mm	100 çin	2.54 çm	Through Hole Right Angle		0.23 in	5.84 mm			Tin
Amphenol ICC (FCI) 68015-232HLF	Solder	UL94 V-0	Gold or Gold GXT™	All	Unshrouded	Header	Push-Pull	Male Pin	1	Phosphor Bronze	3 A	Square	0.1 in	2.54 mm	Black	0.09 "	2.29 mm	0.095 in	2.41 mm	15 µin	0.38 µm	Through Hole Right Angle		0.23 in	5.84 mm
