VSM-2M5 Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

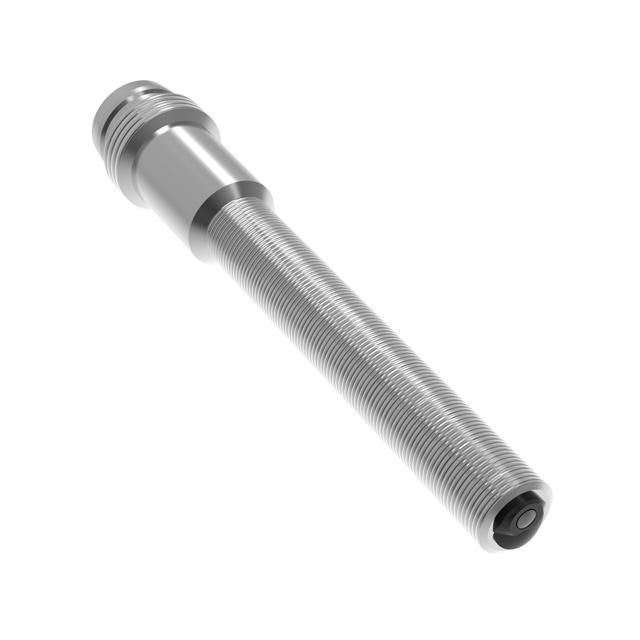

PHOTOELECTRIC SENSORS VSM-2 SERIES: 5 MM BARREL DIFFUSE; RANGE: 20 MM; INPUT 10-30 V DC; OUTPUT: 1 PNP WITH IO-LINK COMMUNICATION; LO (LIGHT OPERATE); INTEGRAL 3-PIN M8; COMES WITH (2) M5 NUTS AND (2) LOCK WASHERS
| Part | Ingress Protection | Sensing Distance | Sensing Distance | Operating Temperature [Min] | Operating Temperature [Max] | Sensing Method | Light Source | Connection Method | Output Configuration | Response Time | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | IEC IP67 IP67 IEC | 20 mm | 0.787 in | -25 °C | 65 °C | Diffuse | Red (630nm) | Connector | PNP - Light-ON | 500 µs | 10 VDC | 30 VDC |
BANNER ENGINEERING | IEC IP67 IP67 IEC | 10 mm | 0.394 in | -25 °C | 65 °C | Diffuse | Red (630nm) | Connector | PNP - Light-ON | 500 µs | 10 VDC | 30 VDC |
