JWL21R Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER DPST 16A 125V
| Part | Mechanical Life | Electrical Life | Voltage Rating - AC | Mounting Type | Approval Agency | Current Rating (Amps) | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Ingress Protection | Color - Actuator/Cap | Actuator Type | Termination Style | Termination Style | Termination Style | Circuit | Actuator Marking | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

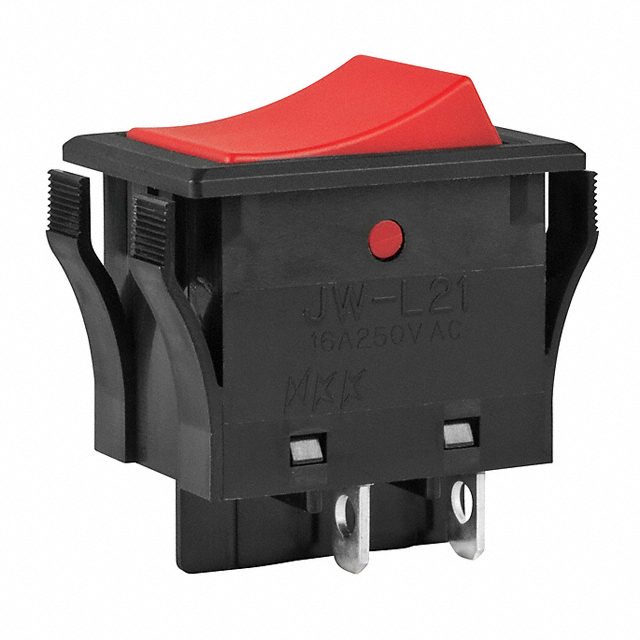

 NKK Switches | 25000 Steps | 25000 Steps | 125 V | Panel Mount Snap-In | CSA UL VDE | 16 A | 20.5 mm | 29.5 mm | Dust Proof | Red | Concave (Curved) | 4.7 mm | 0.187 in | Solder Quick Connect | DPST | No Marking | On-Off | -25 °C | 70 °C | Epoxy Sealed Terminals |

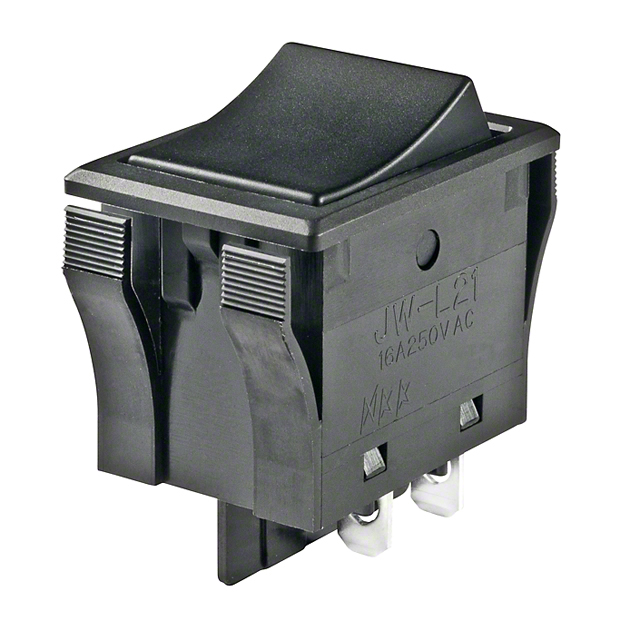

 NKK Switches | 25000 Steps | 25000 Steps | 125 V | Panel Mount Snap-In | CSA UL VDE | 16 A | 20.5 mm | 29.5 mm | Dust Proof | Black | Concave (Curved) | 4.7 mm | 0.187 in | Solder Quick Connect | DPST | No Marking | On-Off | -25 °C | 70 °C | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | 125 V | Panel Mount Snap-In | CSA UL VDE | 16 A | 20.5 mm | 29.5 mm | Dust Proof | Red | Concave (Curved) | 4.7 mm | 0.187 in | Solder Quick Connect | DPST | O I | On-Off | -25 °C | 70 °C | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | 125 V | Panel Mount Snap-In | CSA UL VDE | 16 A | 20.5 mm | 29.5 mm | Dust Proof | Black | Concave (Curved) | 4.7 mm | 0.187 in | Solder Quick Connect | DPST | O - | On-Off | -25 °C | 70 °C | Epoxy Sealed Terminals |
NKK Switches | 25000 Steps | 25000 Steps | 125 V | Panel Mount Snap-In | CSA UL VDE | 16 A | 20.5 mm | 29.5 mm | Dust Proof | Red | Concave (Curved) | 4.7 mm | 0.187 in | Solder Quick Connect | DPST | O - | On-Off | -25 °C | 70 °C | Epoxy Sealed Terminals |
NKK Switches | 25000 Steps | 25000 Steps | 125 V | Panel Mount Snap-In | CSA UL VDE | 16 A | 20.5 mm | 29.5 mm | Dust Proof | Black | Concave (Curved) | 4.7 mm | 0.187 in | Solder Quick Connect | DPST | O I | On-Off | -25 °C | 70 °C | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | 125 V | Panel Mount Snap-In | CSA UL VDE | 16 A | 20.5 mm | 29.5 mm | Dust Proof | Red | Concave (Curved) | 4.7 mm | 0.187 in | Solder Quick Connect | DPST | O - | On-Off | -25 °C | 70 °C | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | 125 V | Panel Mount Snap-In | CSA UL VDE | 16 A | 20.5 mm | 29.5 mm | Dust Proof | Black | Concave (Curved) | 4.7 mm | 0.187 in | Solder Quick Connect | DPST | No Marking | On-Off | -25 °C | 70 °C | |
NKK Switches | 25000 Steps | 25000 Steps | 125 V | Panel Mount Snap-In | CSA UL VDE | 16 A | 20.5 mm | 29.5 mm | Dust Proof | Ivory | Concave (Curved) | 4.7 mm | 0.187 in | Solder Quick Connect | DPST | O - | On-Off | -25 °C | 70 °C | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | 125 V | Panel Mount Snap-In | CSA UL VDE | 16 A | 20.5 mm | 29.5 mm | Dust Proof | Black | Concave (Curved) | 4.7 mm | 0.187 in | Solder Quick Connect | DPST | O I | On-Off | -25 °C | 70 °C | Epoxy Sealed Terminals |
