S6B-XH-A Series

Catalog

CONN HEADER R/A 6POS 2.5MM

Part	Shrouding	Voltage Rating	Fastening Type	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post	Current Rating (Amps)	Insulation Material	Contact Type	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Mounting Type	Insulation Height [z]	Insulation Height [z]	Number of Positions	Style	Insulation Color	Termination	Number of Positions Loaded	Contact Finish - Post	Connector Type

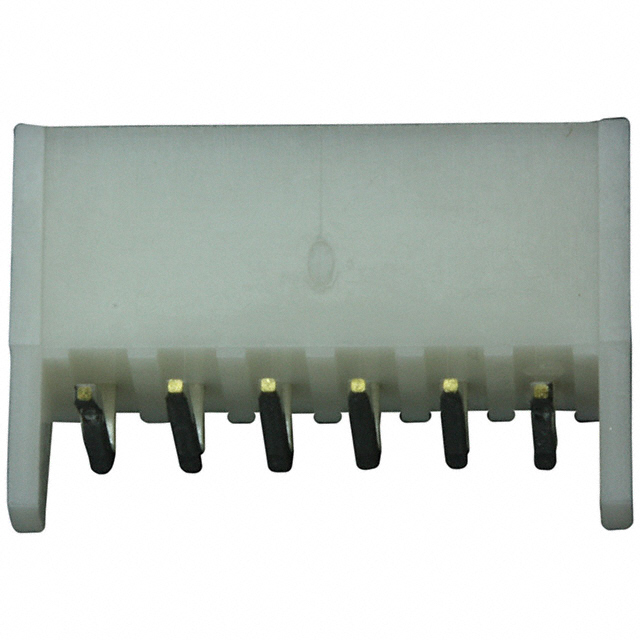

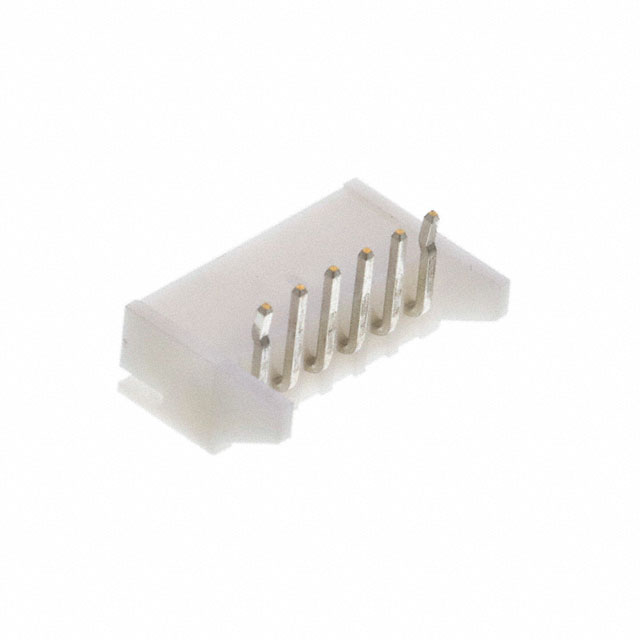

JST Sales America Inc. S6B-XH-A	Shrouded - 4 Wall	250 V	Detent Lock	UL94 V-0	0.134 "	3.4 mm	3 A	Nylon 6/6 Polyamide (PA66)	Male Pin	1	2.5 mm	0.098 in	Square	85 °C	-25 °C	Brass	Right Angle Through Hole	6.1 mm	0.24 in	6	Board to Cable/Wire	Natural	Press-Fit Solder	All	Tin	Header
JST Sales America Inc. S6B-XH-A-1	Shrouded - 4 Wall	250 V	Detent Lock	UL94 V-0	0.134 "	3.4 mm	3 A	Nylon 6/6 Polyamide (PA66)	Male Pin	1	2.5 mm	0.098 in	Square	85 °C	-25 °C	Brass	Right Angle Through Hole	6.1 mm	0.24 in	6	Board to Cable/Wire	Natural	Press-Fit Solder	All	Tin	Header
