S21F2C-P Series
Manufacturer: ODU
Beta
⌘K

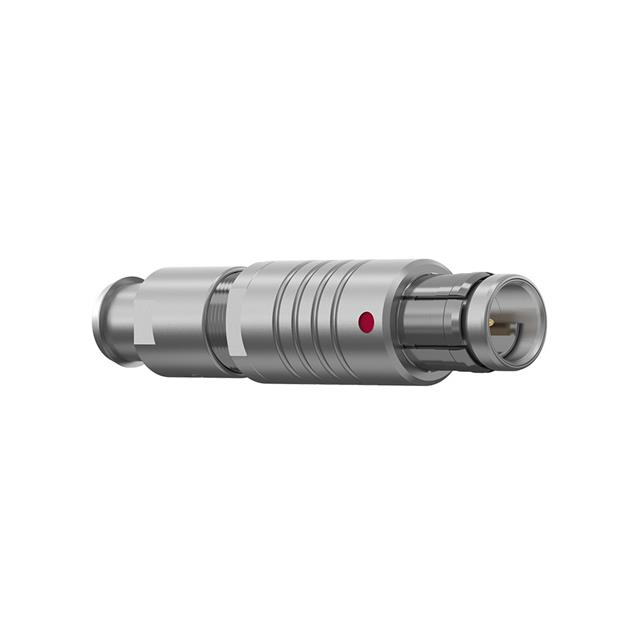

ODU MINI-SNAP PLUG, STY 2, SZ 1,
| Part | Connector Type | Material Flammability Rating | Mounting Type | Primary Material | Backshell Material, Plating | Shell Finish | Ingress Protection | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Shielding | Shell Size - Insert | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Insert Material | Contact Finish - Mating | Voltage Rating | Contact Material | Color | Orientation [custom] | Features | Number of Positions | Fastening Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Plug Male Pins | UL94 V-0 | Free Hanging (In-Line) | Metal | Brass Chrome over Nickel | Chrome over Nickel | IP50 - Dust Protected | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Brass | Unshielded | 1 | 0.177 " | 0.157 in | 4 mm | 4.5 mm | Polyetheretherketone (PEEK) | Gold | 333 V | Brass | Silver | 2 | Backshell Strain Relief | 6 | Push-Pull | 7.5 A | |
Plug Male Pins | UL94 V-0 | Free Hanging (In-Line) | Metal | Brass Chrome over Nickel | Chrome over Nickel | IP50 - Dust Protected | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Brass | Unshielded | 1 | 0.236 in | 0.217 in | 5.5 mm | 6 mm | Polyetheretherketone (PEEK) | Gold | 550 VDC | Brass | Silver | 2 | Backshell Strain Relief | 2 | Push-Pull | 12 Amps |
