9853C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

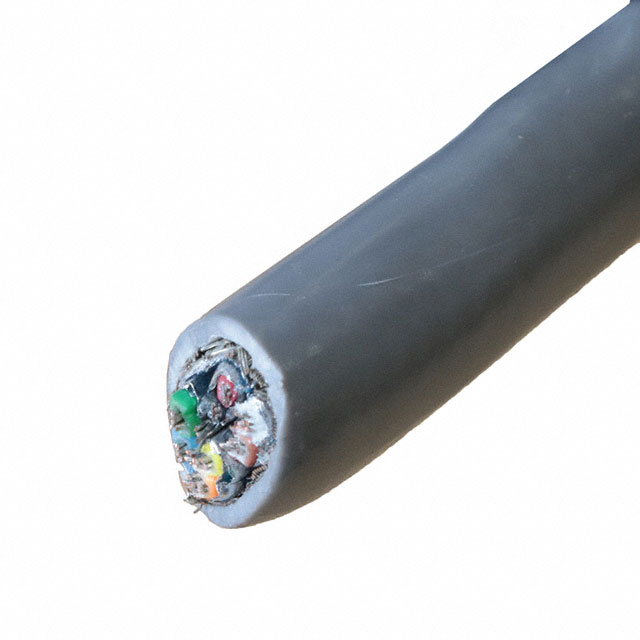

9853C SLATE 1000 FT ROHS COMPLIANT: YES
| Part | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket Color | Wire Gauge | Jacket (Insulation) Material | Shield Coverage | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Material | Cable Type | Features | Length | Length | Voltage | Shield Type | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE | 8 | 28 | 7 | 10.19 mm | 0.401 in | High Density Polyethylene (HDPE) Poly-Vinyl Chloride (PVC) | Slate | 20 AWG | Poly-Vinyl Chloride (PVC) | 94 % 100 % | UL Style 2919 | 0.889 mm | 0.035 in | Aluminum Copper Tinned | Multi-Pair | Drain Wire | 1000 ft | 304.8 m | 300 V | Braid Foil | Copper Tinned | -20 C | 80 C | ||
 ALPHA WIRE | 8 | 28 | 7 | 10.19 mm | 0.401 in | High Density Polyethylene (HDPE) Poly-Vinyl Chloride (PVC) | Slate | 20 AWG | Poly-Vinyl Chloride (PVC) | 94 % 100 % | UL Style 2919 | 0.889 mm | 0.035 in | Aluminum Copper Tinned | Multi-Pair | Drain Wire | 300 V | Braid Foil | Copper Tinned | -20 C | 80 C | 30.5 m | 100 ft |
