31890 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

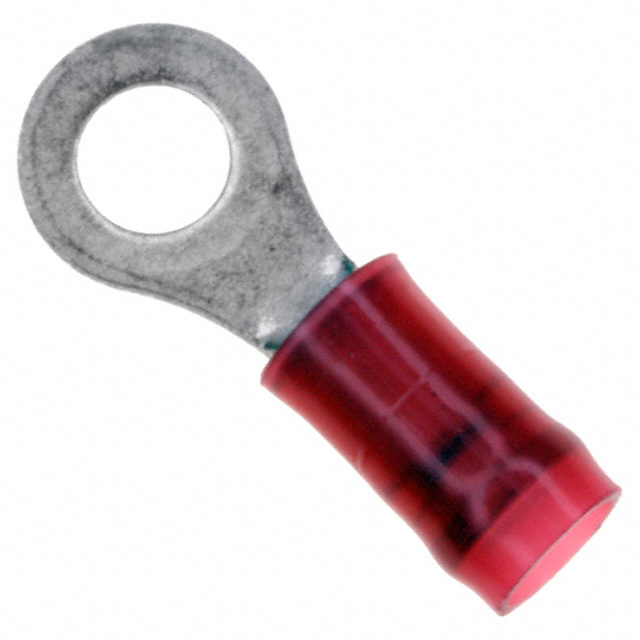

CONN RING CIRC 16-22AWG #8 CRIMP
| Part | Mounting Type | Insulation | Contact Finish | Termination | Width - Outer Edges [y] | Width - Outer Edges [y] | Stud/Tab Size | Material - Insulation | Thickness | Thickness | Color | Features | Length - Overall [x] | Length - Overall [x] | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Terminal Type | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Insulated | Tin | Crimp | 7.92 mm | 0.312 in | 8 Stud | Nylon Polyamide (PA) | 0.031 in | 0.79 mm | Red | Serrated Termination | 0.844 " | 21.44 mm | 22 AWG | 16 AWG | Copper | Circular | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm |
