SCC26 Series

Catalog

IC UART DUAL W/FIFO 44QFP

Part	With False Start Bit Detection	Mounting Type	Package Length	Package Name	Package Width	Data Rate (Max)	Number of Channels	Channel Type	With Auto Flow Control	Voltage - Supply	Features	Package / Case	With Modem Control	Protocol
NXP USA Inc. SCC2692AE1B44,551	Yes	Surface Mount	10 mm	44-PQFP	10 mm	1000 kBaud	2	DUART	Yes	5 VDC	Configurable GPIO Internal Oscillator Timer/Counter	44-QFP

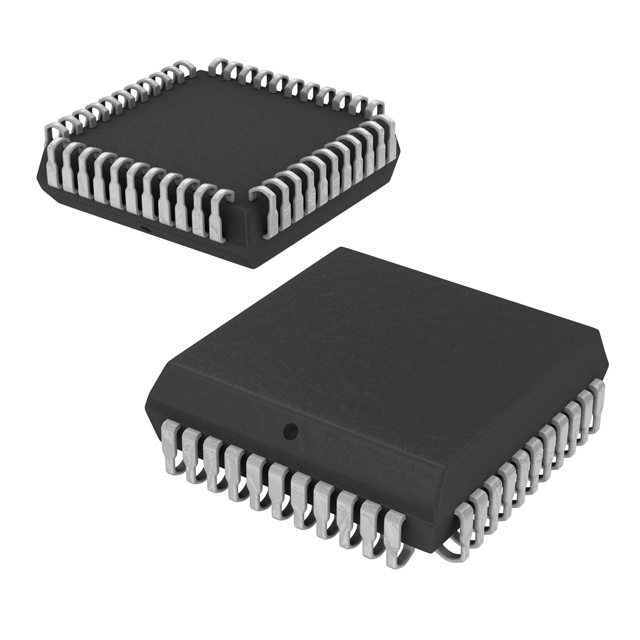

NXP USA Inc. SCC2692AE1A44,529	Yes	Surface Mount	16.59 mm	44-PLCC	16.59 mm	1000 kBaud	2	DUART	Yes	5 VDC	Configurable GPIO Internal Oscillator Timer/Counter	44-LCC (J-Lead)

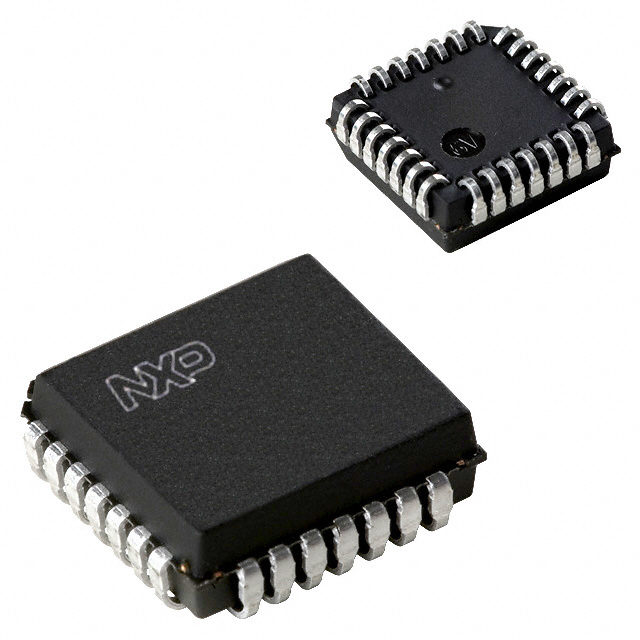

NXP USA Inc. SCC2691AC1A28,512	Yes	Surface Mount	11.48 mm	28-PLCC	11.48 mm		1	UART	Yes	5 VDC	Configurable GPIO Internal Oscillator Timer/Counter	28-LCC (J-Lead)
NXP USA Inc. SCC2681AE1A44,518	Yes	Surface Mount	16.59 mm	44-PLCC	16.59 mm	1000 kBaud	2	DUART	Yes	5 VDC	Configurable GPIO Internal Oscillator Timer/Counter	44-LCC (J-Lead)
NXP USA Inc. SCC2692AE1B44,557	Yes	Surface Mount	10 mm	44-PQFP	10 mm	1000 kBaud	2	DUART	Yes	5 VDC	Configurable GPIO Internal Oscillator Timer/Counter	44-QFP

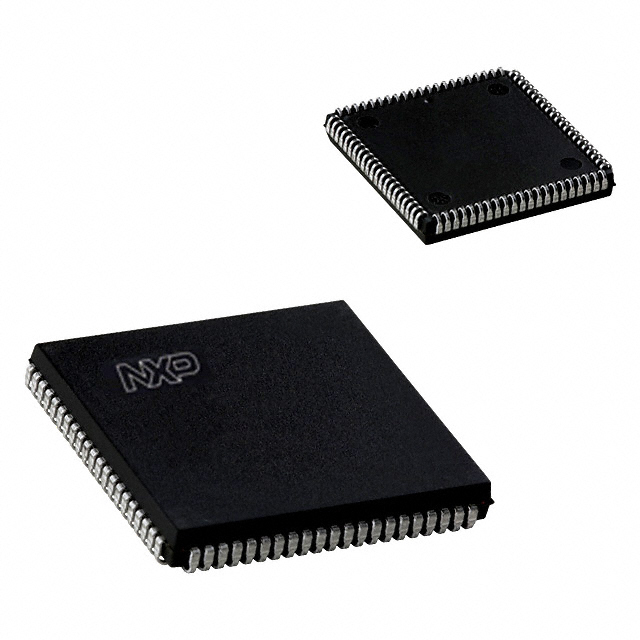

NXP USA Inc. SCC2698BC1A84,518	Yes	Surface Mount	29.26 mm	84-PLCC	29.26 mm		8		Yes	5 VDC	Configurable GPIO Internal Oscillator Timer/Counter	84-LCC (J-Lead)	Yes	RS485
NXP USA Inc. SCC2691AC1A28,518	Yes	Surface Mount	11.48 mm	28-PLCC	11.48 mm		1	UART	Yes	5 VDC	Configurable GPIO Internal Oscillator Timer/Counter	28-LCC (J-Lead)
NXP USA Inc. SCC2692AE1A44,512	Yes	Surface Mount	16.59 mm	44-PLCC	16.59 mm	1000 kBaud	2	DUART	Yes	5 VDC	Configurable GPIO Internal Oscillator Timer/Counter	44-LCC (J-Lead)

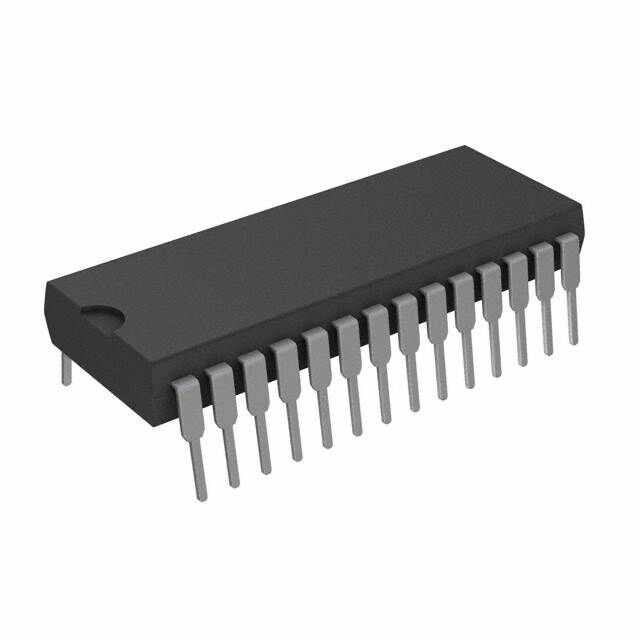

NXP USA Inc. SCC2692AE1N28,129	Yes	Through Hole	0.6 in	28-DIP	15.24 mm	1000 kBaud	2	DUART	Yes	5 VDC	Configurable GPIO Internal Oscillator Timer/Counter
NXP USA Inc. SCC2681TC1A44,529	Yes	Surface Mount	16.59 mm	44-PLCC	16.59 mm	1000 kBaud	2	DUART	Yes	5 VDC	Configurable GPIO Internal Oscillator Timer/Counter	44-LCC (J-Lead)
