LB26WKG01 Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Electrical Life	Mechanical Life	Type	Actuator Type	Panel Cutout Dimensions [diameter]	Circuit	Voltage Rating - DC	Switch Function	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Marking	Termination Style	Color - Actuator/Cap	Mounting Type	Voltage Rating - AC	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches LB26WKG01-GJ	100000 Cycles	200000 Cycles	Standard	Button Round	22 mm	DPDT	28 V	On-On	IP65 - Dust Tight Water Resistant	-25 °C	70 °C	0.4 VA	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Blue	Panel Mount Front	28 V
NKK Switches LB26WKG01-5C12-JC	100000 Cycles	200000 Cycles	Illuminated Standard	Button Round	22 mm	DPDT	28 V	On-On	IP65 - Dust Tight Water Resistant	-25 °C	50 °C	0.4 VA	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Clear	Panel Mount Front	28 V	12 VDC	LED Red

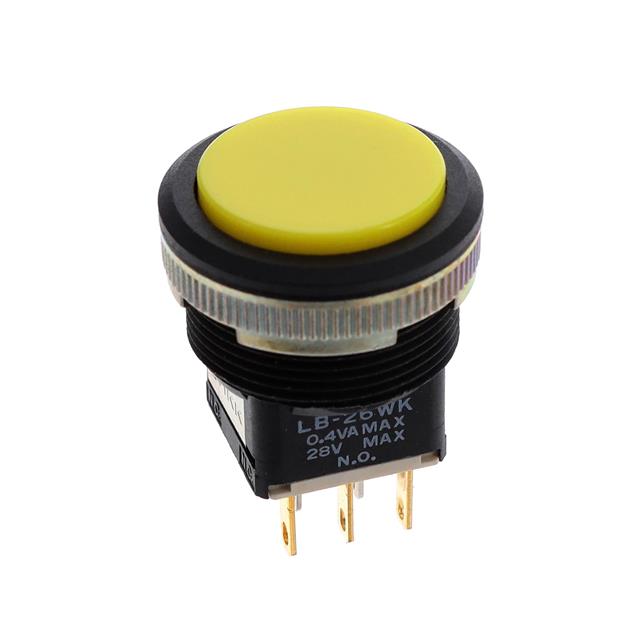

NKK Switches LB26WKG01-EJ	100000 Cycles	200000 Cycles	Standard	Button Round	22 mm	DPDT	28 V	On-On	IP65 - Dust Tight Water Resistant	-25 °C	70 °C	0.4 VA	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Yellow	Panel Mount Front	28 V

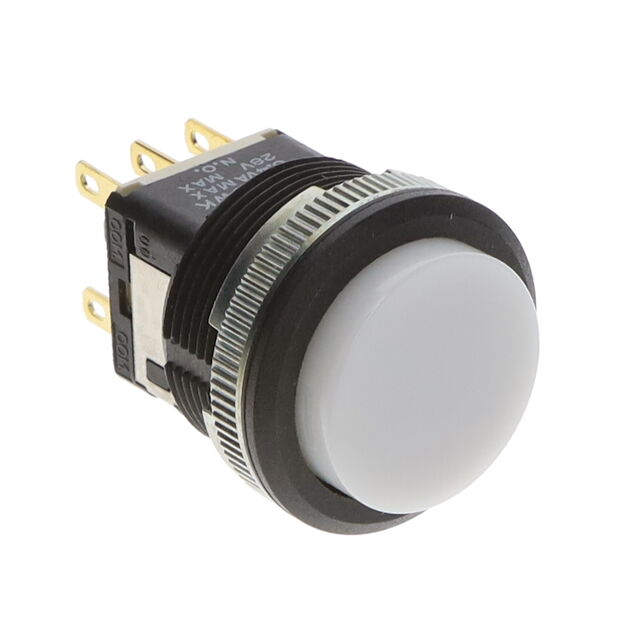

NKK Switches LB26WKG01-BJ	100000 Cycles	200000 Cycles	Standard	Button Round	22 mm	DPDT	28 V	On-On	IP65 - Dust Tight Water Resistant	-25 °C	70 °C	0.4 VA	No Marking	Solder Quick Connect - 0.110" (2.8mm)	White	Panel Mount Front	28 V
NKK Switches LB26WKG01-5C05-JC	100000 Cycles	200000 Cycles	Illuminated Standard	Button Round	22 mm	DPDT	28 V	On-On	IP65 - Dust Tight Water Resistant	-25 °C	50 °C	0.4 VA	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Clear	Panel Mount Front	28 V	5 VDC	LED Red
NKK Switches LB26WKG01-5F05-JF	100000 Cycles	200000 Cycles	Illuminated Standard	Button Round	22 mm	DPDT	28 V	On-On	IP65 - Dust Tight Water Resistant	-25 °C	50 °C	0.4 VA	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Clear	Panel Mount Front	28 V	5 VDC	Green LED
NKK Switches LB26WKG01-FJ	100000 Cycles	200000 Cycles	Standard	Button Round	22 mm	DPDT	28 V	On-On	IP65 - Dust Tight Water Resistant	-25 °C	70 °C	0.4 VA	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Green	Panel Mount Front	28 V
NKK Switches LB26WKG01-5C24-JB	100000 Cycles	200000 Cycles	Illuminated Standard	Button Round	22 mm	DPDT	28 V	On-On	IP65 - Dust Tight Water Resistant	-25 °C	50 °C	0.4 VA	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Clear	Panel Mount Front	28 V	24 V	LED Red
NKK Switches LB26WKG01-6F-JB	100000 Cycles	200000 Cycles	Illuminated Standard	Button Round	22 mm	DPDT	28 V	On-On	IP65 - Dust Tight Water Resistant	-25 °C	50 °C	0.4 VA	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Clear	Panel Mount Front	28 V	3.3 VDC	Green LED
NKK Switches LB26WKG01-6G-JB	100000 Cycles	200000 Cycles	Illuminated Standard	Button Round	22 mm	DPDT	28 V	On-On	IP65 - Dust Tight Water Resistant	-25 °C	50 °C	0.4 VA	No Marking	Solder Quick Connect - 0.110" (2.8mm)	Clear	Panel Mount Front	28 V	3.6 VDC	Blue LED
