DRV10975 Series

12-V nominal, 2-A peak sensorless sinusoidal control 3-phase BLDC motor driver

Catalog

12-V nominal, 2-A peak sensorless sinusoidal control 3-phase BLDC motor driver

Part	Technology	Applications	Package / Case	Package / Case	Voltage - Load [Max]	Voltage - Load [Min]	Interface	Mounting Type	Function	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Supplier Device Package	Output Configuration	Motor Type - AC, DC	Voltage - Supply [Max]	Voltage - Supply [Min]	Secondary Attributes	Type	Supplied Contents	Utilized IC / Part	Motor Type - Stepper
Texas Instruments DRV10975PWP	Power MOSFET	Appliance	0.173 in 4.4 mm	24-PowerTSSOP	18 V	6.5 V	Analog I2C PWM	Surface Mount	Driver - Fully Integrated Control and Power Stage	-40 °C	125 ¯C	1.5 A	24-HTSSOP	Half Bridge (3)	Brushless DC (BLDC)	18 V	6.5 VDC
Texas Instruments DRV10975ZPWP	Power MOSFET	Appliance	0.173 in 4.4 mm	24-PowerTSSOP	18 V	6.5 V	Analog I2C PWM	Surface Mount	Driver - Fully Integrated Control and Power Stage	-40 °C	125 ¯C	1.5 A	24-HTSSOP	Half Bridge (3)	Brushless DC (BLDC)	18 V	6.5 VDC

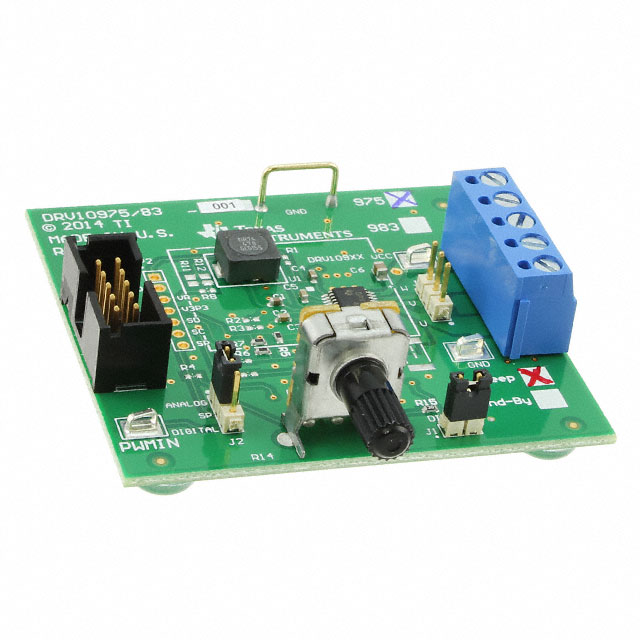

Texas Instruments DRV10975EVM									Motor Controller/Driver									Graphical User Interface (GUI)	Power Management	Accessories Board(s)	DRV10975
Texas Instruments DRV10975PWPR	Power MOSFET	Appliance	0.173 in 4.4 mm	24-PowerTSSOP	18 V	6.5 V	Analog I2C PWM	Surface Mount	Driver - Fully Integrated Control and Power Stage	-40 °C	125 ¯C	1.5 A	24-HTSSOP	Half Bridge (3)	Brushless DC (BLDC)	18 V	6.5 VDC
Texas Instruments DRV10975RHFR	Power MOSFET	Appliance		24-VFQFN Exposed Pad	18 V	6.5 V	Analog I2C PWM	Surface Mount	Driver - Fully Integrated Control and Power Stage	-40 °C	125 °C	1.5 A	24-VQFN (5x4)	Half Bridge (3)	Brushless DC (BLDC)	18 V	6.5 VDC					Multiphase

Catalog

12-V nominal, 2-A peak sensorless sinusoidal control 3-phase BLDC motor driver

Key Features

• Input Voltage Range: 6.5 to 18 VTotal Driver H + L rDS(on): 250 mΩDrive Current: 1.5-A Continuous Winding Current (2-A Peak)Sensorless Proprietary Back Electromotive Force (BEMF) Control SchemeContinuous Sinusoidal 180° CommutationNo External Sense Resistor RequiredFor Flexibility User May Include External Sense Resistor to Monitor Power Delivered to MotorFlexible User Interface Options:I2C Interface: Access Registers for Command and FeedbackDedicated SPEED Pin: Accepts Either Analog or PWM InputDedicated FG Pin: Provides TACH FeedbackSpin-Up Profile Customizable With EEPROMForward-Reverse Control With DIR PinIntegrated Step-Down Regulator to Efficiently Provide Voltage (5 V or 3.3 V) for Internal and External CircuitsSupply Current 4.5 mA With Standby Version (DRV10975)Supply Current 80 µA With Sleep Version (DRV10975Z)Overcurrent ProtectionLock DetectionVoltage Surge ProtectionUVLO ProtectionThermal Shutdown ProtectionThermally-Enhanced 24-Pin HTSSOPInput Voltage Range: 6.5 to 18 VTotal Driver H + L rDS(on): 250 mΩDrive Current: 1.5-A Continuous Winding Current (2-A Peak)Sensorless Proprietary Back Electromotive Force (BEMF) Control SchemeContinuous Sinusoidal 180° CommutationNo External Sense Resistor RequiredFor Flexibility User May Include External Sense Resistor to Monitor Power Delivered to MotorFlexible User Interface Options:I2C Interface: Access Registers for Command and FeedbackDedicated SPEED Pin: Accepts Either Analog or PWM InputDedicated FG Pin: Provides TACH FeedbackSpin-Up Profile Customizable With EEPROMForward-Reverse Control With DIR PinIntegrated Step-Down Regulator to Efficiently Provide Voltage (5 V or 3.3 V) for Internal and External CircuitsSupply Current 4.5 mA With Standby Version (DRV10975)Supply Current 80 µA With Sleep Version (DRV10975Z)Overcurrent ProtectionLock DetectionVoltage Surge ProtectionUVLO ProtectionThermal Shutdown ProtectionThermally-Enhanced 24-Pin HTSSOP

Description

The DRV10975 device is a three-phase sensorless motor driver with integrated power MOSFETs, which can provide continuous drive current up to 1.5 A. The device is specifically designed for cost-sensitive, low-noise, low-external-component-count applications. The DRV10975 device uses a proprietary sensorless control scheme to provide continuous sinusoidal drive, which significantly reduces the pure tone acoustics that typically occur as a result of commutation. The interface to the device is designed to be simple and flexible. The motor can be controlled directly through PWM, analog, or I2C inputs. Motor speed feedback is available through either the FG pin or I2C. The DRV10975 device features an integrated step-down regulator to efficiently step down the supply voltage to either 5 or 3.3 V for powering both internal and external circuits. The device is available in either a sleep mode or a standby mode version to conserve power when the motor is not running. The standby mode (4.5-mA) version leaves the regulator running and the sleep mode (80-µA) version shuts it off. Use the standby mode version in applications where the regulator is used to power an external microcontroller. TI providesDRV10975 tuning Guidefor quick setup and tuning of the device for optimal performance. An I2C interface allows the user to reprogram specific motor parameters in registers and program the EEPROM to help optimize the performance for a given application. The DRV10975 device is available in a thermally efficient HTSSOP, 24-pin package with an exposed thermal pad. The operating temperature is specified from –40°C to 125°C. The DRV10975 device is a three-phase sensorless motor driver with integrated power MOSFETs, which can provide continuous drive current up to 1.5 A. The device is specifically designed for cost-sensitive, low-noise, low-external-component-count applications. The DRV10975 device uses a proprietary sensorless control scheme to provide continuous sinusoidal drive, which significantly reduces the pure tone acoustics that typically occur as a result of commutation. The interface to the device is designed to be simple and flexible. The motor can be controlled directly through PWM, analog, or I2C inputs. Motor speed feedback is available through either the FG pin or I2C. The DRV10975 device features an integrated step-down regulator to efficiently step down the supply voltage to either 5 or 3.3 V for powering both internal and external circuits. The device is available in either a sleep mode or a standby mode version to conserve power when the motor is not running. The standby mode (4.5-mA) version leaves the regulator running and the sleep mode (80-µA) version shuts it off. Use the standby mode version in applications where the regulator is used to power an external microcontroller. TI providesDRV10975 tuning Guidefor quick setup and tuning of the device for optimal performance. An I2C interface allows the user to reprogram specific motor parameters in registers and program the EEPROM to help optimize the performance for a given application. The DRV10975 device is available in a thermally efficient HTSSOP, 24-pin package with an exposed thermal pad. The operating temperature is specified from –40°C to 125°C.
