BQ24261M Series
1S, 3A, 30V, Single-Input Switchmode Li-Ion Battery Charger with Power Path and USB-OTG
Manufacturer: Texas Instruments
Catalog
1S, 3A, 30V, Single-Input Switchmode Li-Ion Battery Charger with Power Path and USB-OTG
Beta
⌘K
1S, 3A, 30V, Single-Input Switchmode Li-Ion Battery Charger with Power Path and USB-OTG
1S, 3A, 30V, Single-Input Switchmode Li-Ion Battery Charger with Power Path and USB-OTG
1S, 3A, 30V, Single-Input Switchmode Li-Ion Battery Charger with Power Path and USB-OTG
| Part | Secondary Attributes | Utilized IC / Part | Primary Attributes | Supplied Contents | Type | Function | Mounting Type | Interface | Fault Protection | Voltage - Supply (Max) [Max] | Supplier Device Package | Battery Chemistry | Operating Temperature [Max] | Operating Temperature [Min] | Battery Pack Voltage | Current - Charging | Programmable Features | Number of Cells | Package / Case | Charge Current - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

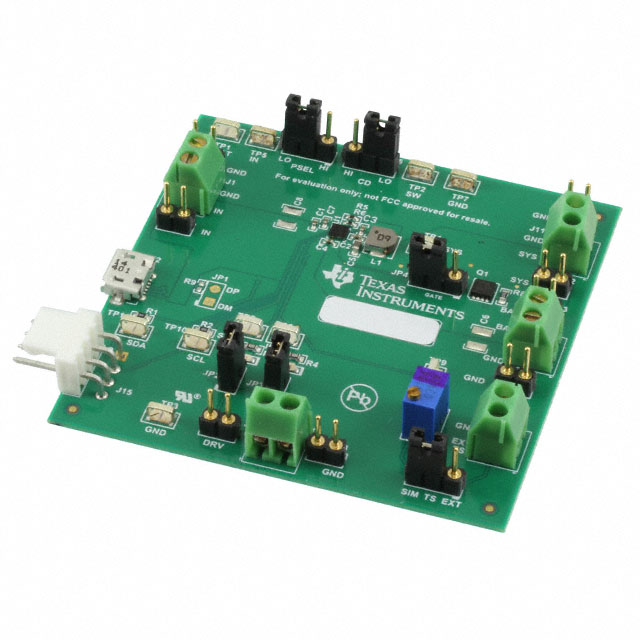

 Texas Instruments | On-Board LEDs | BQ24261M | Li-Ion (1 Cell) | Board(s) | Power Management | Battery Charger | ||||||||||||||
 Texas Instruments | Surface Mount | I2C | Over Temperature Over Voltage | 13.2 V | 36-DSBGA (2.63x2.46) | Lithium Ion | 85 °C | -40 °C | 3.5 V | Constant - Programmable | Current | 1 | 36-UFBGA DSBGA | 3 A | ||||||
 Texas Instruments | Surface Mount | I2C | Over Temperature Over Voltage | 13.2 V | 24-VQFN (4x4) | Lithium Ion | 85 °C | -40 °C | 3.5 V | Constant - Programmable | Current | 1 | 24-VFQFN Exposed Pad | 3 A | ||||||
 Texas Instruments | Surface Mount | I2C | Over Temperature Over Voltage | 13.2 V | 36-DSBGA (2.63x2.46) | Lithium Ion | 85 °C | -40 °C | 3.5 V | Constant - Programmable | Current | 1 | 36-UFBGA DSBGA | 3 A | ||||||
 Texas Instruments | BQ24261 | Board(s) | Power Management | Battery Charger | ||||||||||||||||
Texas Instruments | Surface Mount | I2C | Over Temperature Over Voltage | 13.2 V | 24-VQFN (4x4) | Lithium Ion | 85 °C | -40 °C | 3.5 V | Constant - Programmable | Current | 1 | 24-VFQFN Exposed Pad | 3 A |
