745-080 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 80POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Color	Contact Type	Number of Positions	Gender	Number of Positions/Bay/Row [custom]	Read Out	Card Type	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish

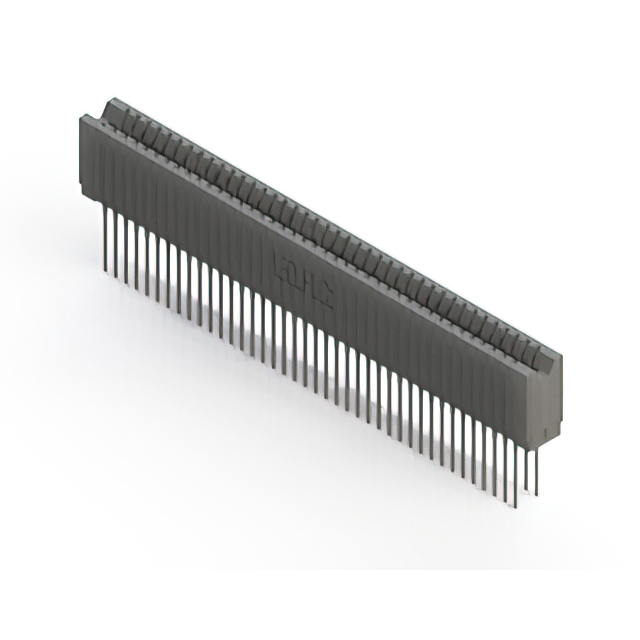

EDAC Inc. 745-080-541-206	Polyester Thermoplastic	2	Black	Cantilever	80	Female	40	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.1 "	2.54 mm	30 Áin	0.76 Ám	Through Hole	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	Gold

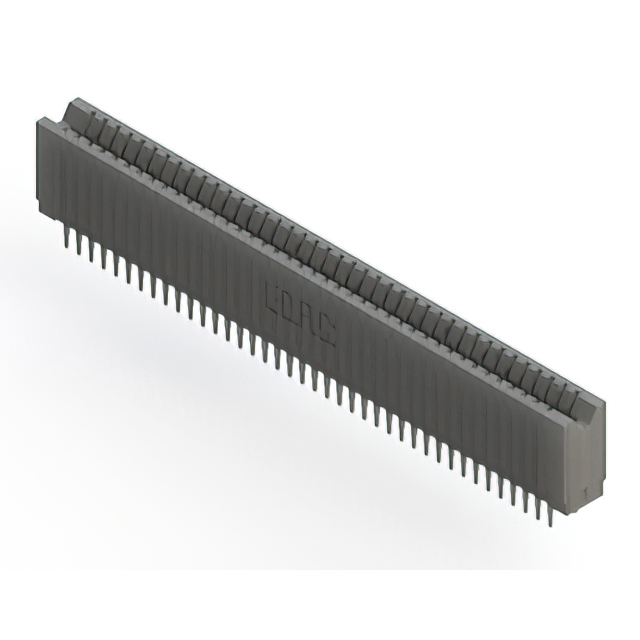

EDAC Inc. 745-080-520-206	Polyester Thermoplastic	2	Black	Cantilever	80	Female	40	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.1 "	2.54 mm	30 Áin	0.76 Ám	Through Hole	Copper Alloy	Press-Fit	-40 C	105 ░C	Gold
EDAC Inc. 745-080-520-201	Polyester Thermoplastic	2	Black	Cantilever	80	Female	40	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.1 "	2.54 mm	30 Áin	0.76 Ám	Through Hole	Copper Alloy	Press-Fit	-40 C	105 ░C	Gold
EDAC Inc. 745-080-320-201	Polyester Thermoplastic	2	Black	Cantilever	80	Female	40	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.1 "	2.54 mm	30 Áin	0.76 Ám	Through Hole	Copper Alloy	Press-Fit	-40 C	105 ░C	Gold
EDAC Inc. 745-080-522-201	Polyester Thermoplastic	2	Black	Cantilever	80	Female	40	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.1 "	2.54 mm	30 Áin	0.76 Ám	Through Hole	Copper Alloy	Press-Fit	-40 C	105 ░C	Gold
EDAC Inc. 745-080-540-206	Polyester Thermoplastic	2	Black	Cantilever	80	Female	40	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.1 "	2.54 mm	30 Áin	0.76 Ám	Through Hole	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	Gold
EDAC Inc. 745-080-540-201	Polyester Thermoplastic	2	Black	Cantilever	80	Female	40	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.1 "	2.54 mm	30 Áin	0.76 Ám	Through Hole	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	Gold
EDAC Inc. 745-080-541-201	Polyester Thermoplastic	2	Black	Cantilever	80	Female	40	Dual	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.1 "	2.54 mm	30 Áin	0.76 Ám	Through Hole	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	Gold
