DA5-050 Series

Catalog

AC/DC WALL MOUNT ADAPTER 5V 5W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector	Approval Agency	No Load Power Consumption	Input Type	Efficiency	Input Connector	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Form	Region Utilized	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]

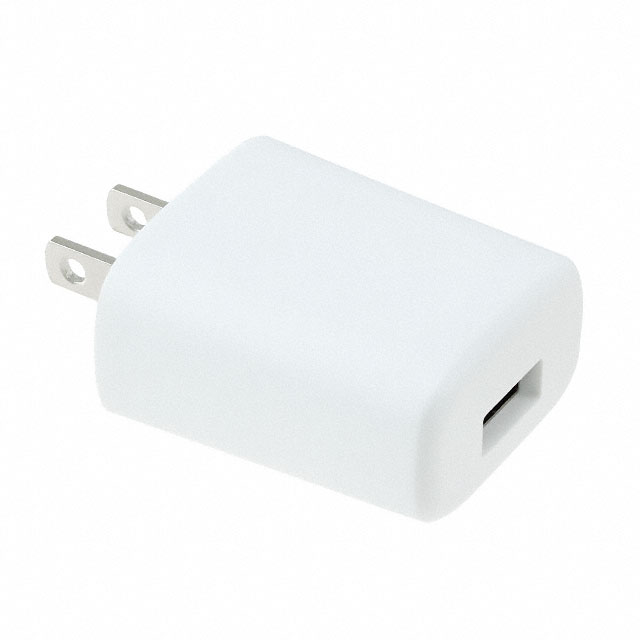

ARTESYN / Advanced Energy DA5-050US-W	264 VAC	90 VAC	USB A Receptacle	CCC CE CSA DEMKO CB PSE UL	75 mW	Fixed Blade	CoC Tier 2 Level VI	NEMA 1-15P	ITE (Commercial)	1.56 " 39.5 mm	0.98 in 25 mm	1.73 " 44 mm	1 A	Wall Mount	North America	5 W	40 °C	-10 °C	5 V

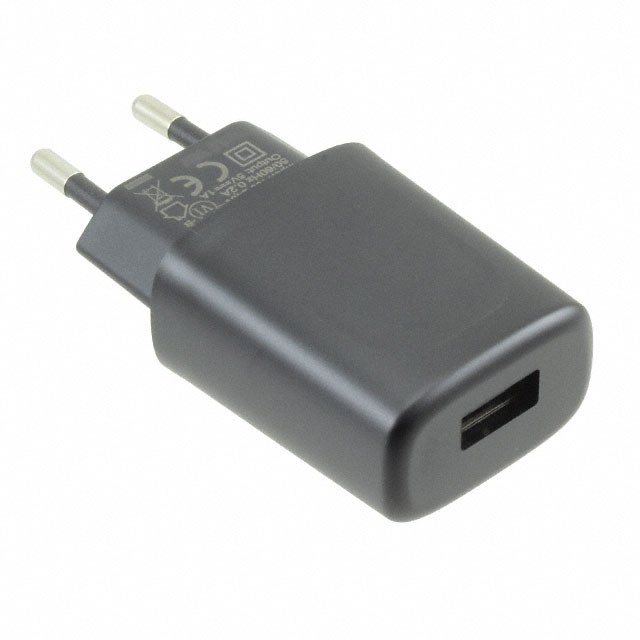

ARTESYN / Advanced Energy DA5-050EU-B	264 VAC	90 VAC	USB A Receptacle	CCC CE CSA DEMKO CB PSE UL	75 mW	Fixed Blade	CoC Tier 2 Level VI	CEE 7/16	ITE (Commercial)	1.56 "	0.98 in	2.45 in	1 A	Wall Mount	Europe	5 W	40 °C	-10 °C	5 V	39.5 mm	62.3 mm	25 mm
