9308-9113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

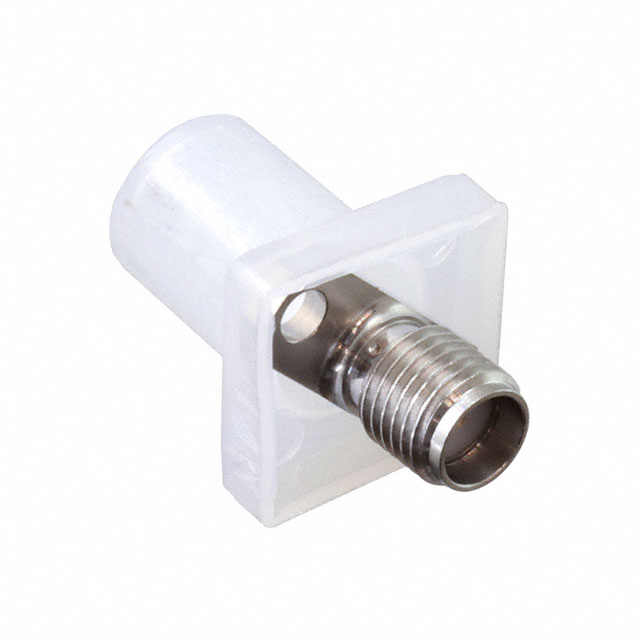

SMA F STR NWF
| Part | Mating Cycles | Dielectric Material | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Fastening Type | Contact Termination | Mounting Type | Shield Termination | Impedance | Connector Style | Number of Ports | Center Contact Material | Connector Type | Frequency - Max [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | -65 ░C | 165 °C | Flange | Threaded | Solder | Panel Mount | Solder | 50 Ohms | SMA | 1 | Beryllium Copper | Female Socket Jack | 18 GHz | Extended Insulation |
