632 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

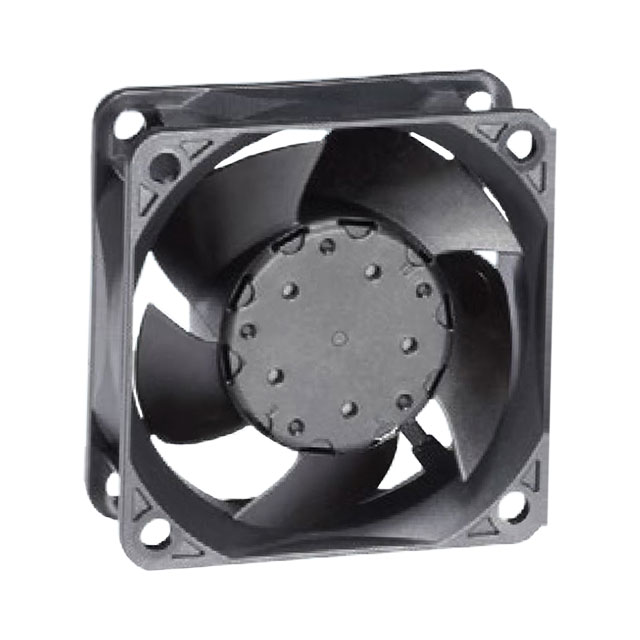

FAN AXIAL 60X25.4MM 12VDC WIRE
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Material - Blade | Ingress Protection | Noise | Fan Type | Power (Watts) | Weight | Weight | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Features | Approval Agency | RPM | Termination | Size / Dimension [z] | Size / Dimension [x] | Bearing Type | Width [y] | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 11 VDC | 13 V | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | IP68 - Dust Tight Waterproof | 35 dB | Tubeaxial | 1.5 W | 0.154 lb | 69.85 g | 12 VDC | -20 ░C | 70 °C | PWM Control Speed Sensor (Tach) | UL | 6300 RPM | 4 Wire Leads | 60 mm | 60 mm | Ball | 25.4 mm | 25.9 CFM | 0.725 m³/min |
