MCR-B-S-R Series
Manufacturer: Adam Tech
Beta
⌘K

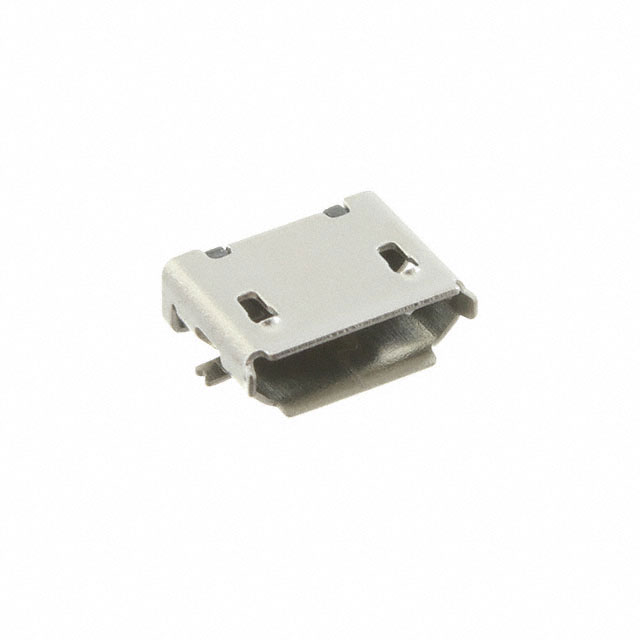

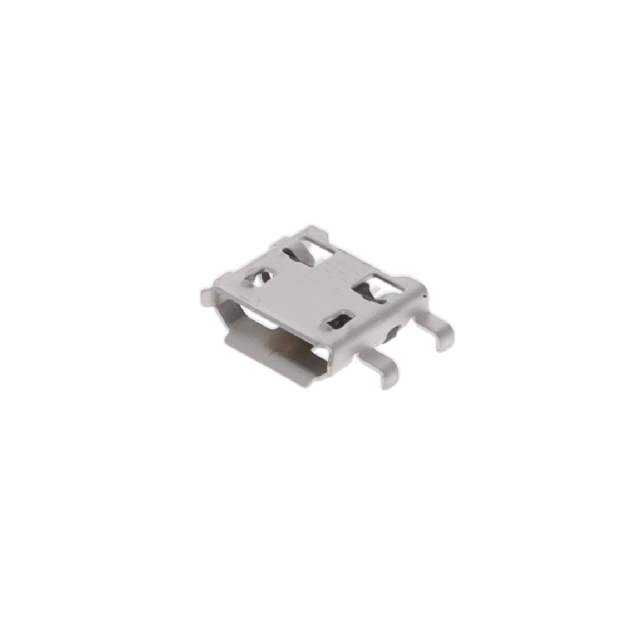

MICRO USB, TYPE B, RIGHT ANGLE,
| Part | Material Flammability Rating | Contact Finish | Insulation Color | Shell/Shielding Material | Connector Type | Gender | Mounting Type | Mounting Feature | Features | Termination | Shielding | Number of Contacts | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | UL94 V-0 | Gold | Black | Copper Alloy | USB - micro B | Receptacle | Right Angle Surface Mount | Horizontal | Solder Retention | Solder | Shielded | 5 | 1 | 80 °C | -30 ░C |
 Adam Tech | UL94 V-0 | Gold | Black | Copper Alloy | USB - micro B | Receptacle | Board Cutout Right Angle Surface Mount Through Hole | Horizontal Mid Mount | Solder | Shielded | 5 | 1 | 80 °C | -30 ░C | |
 Adam Tech | UL94 V-0 | Gold | Black | Copper Alloy | USB - micro B | Receptacle | Right Angle Surface Mount | Horizontal | Solder Retention | Solder | Shielded | 5 | 1 | 80 °C | -30 ░C |
