PV10 Series

Terminals VYL-RING 8 RED 3/8

Manufacturer: Panduit Corp

Catalog

Terminals VYL-RING 8 RED 3/8

Catalog

Terminals VYL-RING 8 RED 3/8

Part	Features	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Material	Insulation	Termination	Contact Finish	Terminal Type	Insulation Diameter	Insulation Diameter	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Stud/Tab Size	Length - Overall	Length - Overall	Material - Insulation	Color	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Insulation Diameter	Thickness	Thickness	Width - Outer Edges	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]
Panduit Corp PV18-6LF-MY	Brazed Seam Serrated Termination	0.27 in	6.86 mm	Copper	Insulated	Crimp	Tin	Snap Spring	3.81 mm	0.15 in	22 AWG	17.5 AWG	Free Hanging (In-Line)	6 Stud	0.9 in	22.86 mm	Vinyl	Red	3.56 mm	0.14 in

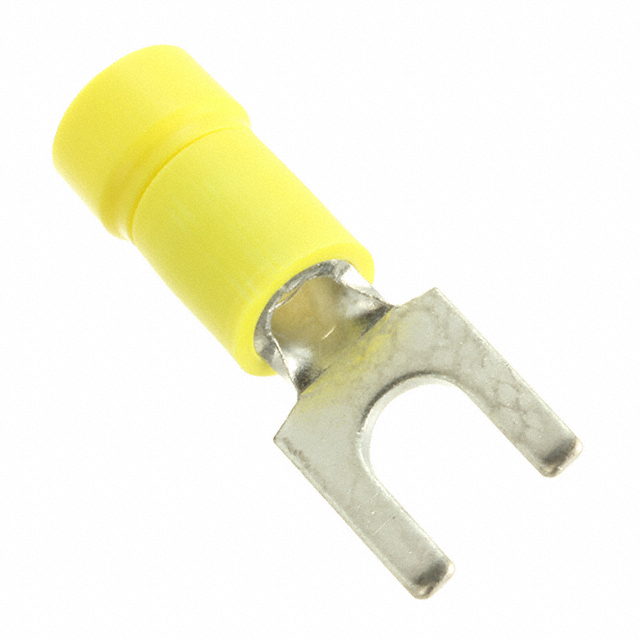

Panduit Corp PV10-10F-E	Brazed Seam	0.37 in	9.4 mm	Copper	Insulated	Crimp	Tin	Standard			12 AWG	10 AWG	Free Hanging (In-Line)	10 Stud			Vinyl	Yellow	5.08 mm	0.2 in	5.72 mm	0.225 "	26.42 mm	1.04 "
Panduit Corp PV10-14F-L	Brazed Seam	0.49 in	12.45 mm	Copper	Insulated	Crimp	Tin	Standard			12 AWG	10 AWG	Free Hanging (In-Line)	0.25 Stud			Vinyl	Yellow			5.72 mm	0.225 "	28.96 mm	1.14 in
Panduit Corp PV10-14FX-L	Brazed Seam Serrated Termination	0.5 in	12.7 mm	Copper	Insulated	Crimp	Tin	Standard		6.35 mm	12 AWG	10 AWG	Free Hanging (In-Line)	0.25 Stud			Vinyl	Yellow	6.86 mm	0.27 in			30.99 mm	1.22 in	0.25 "
Panduit Corp PV10-6RX-D	Brazed Seam Serrated Termination	0.31 in		Copper	Insulated	Crimp	Tin	Circular		6.35 mm	12 AWG	10 AWG	Free Hanging (In-Line)	6 Stud			Vinyl	Yellow					27.94 mm	1.1 in	0.25 "	0.04 in	1.02 mm	7.87 mm
Panduit Corp PV10-6FB-2K	Butted Seam			Copper	Insulated	Crimp	Tin	Standard			12 AWG	10 AWG	Free Hanging (In-Line)	6 Stud			Vinyl	Yellow	3.81 mm	0.15 in	5.84 mm	0.23 in	25.15 mm	0.99 in

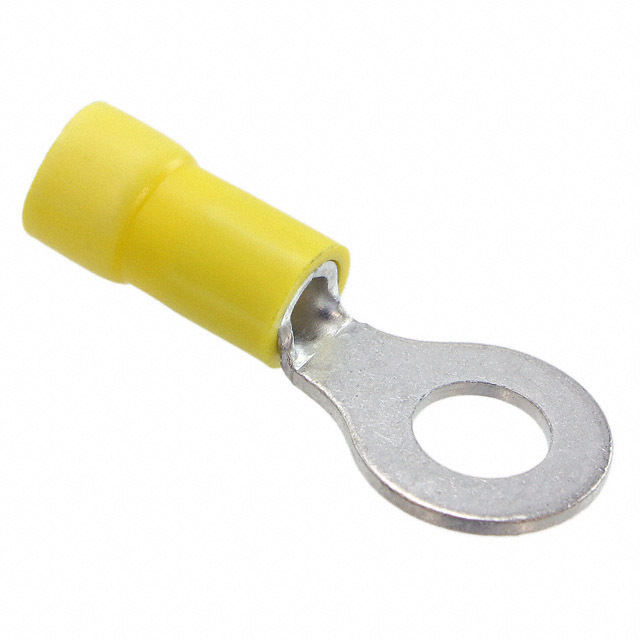

Panduit Corp PV10-38RX-L	Brazed Seam Serrated Termination			Copper	Insulated	Crimp	Tin	Circular		6.35 mm	12 AWG	10 AWG	Free Hanging (In-Line)				Vinyl	Yellow					35.31 mm	1.39 in	0.25 "	0.04 in	1.02 mm		3/8 Stud	14.73 mm	0.58 in

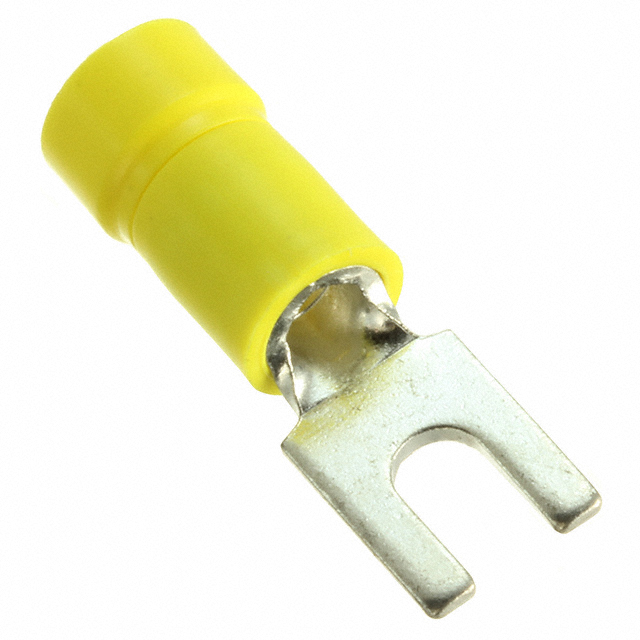

Panduit Corp PV10-6F-L	Brazed Seam	0.31 in		Copper	Insulated	Crimp	Tin	Standard			12 AWG	10 AWG	Free Hanging (In-Line)	6 Stud			Vinyl	Yellow	3.56 mm	0.14 in	5.72 mm	0.225 "	25.65 mm	1.01 in				7.87 mm
Panduit Corp PV10-8F-L	Brazed Seam	0.37 in	9.4 mm	Copper	Insulated	Crimp	Tin	Standard			12 AWG	10 AWG	Free Hanging (In-Line)				Vinyl	Yellow	4.32 mm	0.17 in	5.72 mm	0.225 "	26.42 mm	1.04 "					8 Stud

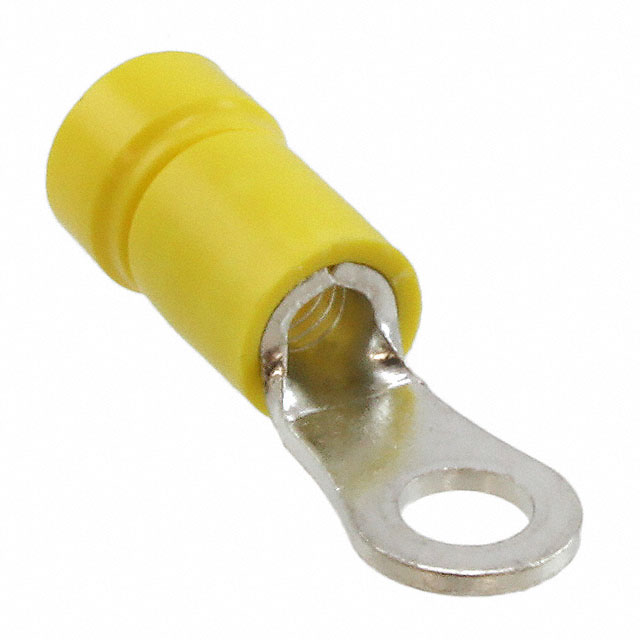

Panduit Corp PV10-8RB-2K		0.31 in		Copper	Insulated	Crimp	Tin	Circular			12 AWG	10 AWG	Free Hanging (In-Line)				Vinyl	Yellow			5.84 mm	0.23 in	25.91 mm	1.02 in		0.031 in	0.79 mm	7.87 mm	8 Stud
