50.620 Series

Catalog

CABLE GLAND 8-13MM M20 POLYAMIDE

Part	Ingress Protection	Thread Length	Thread Length	Thread Size	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [diameter]	Color	Type	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]

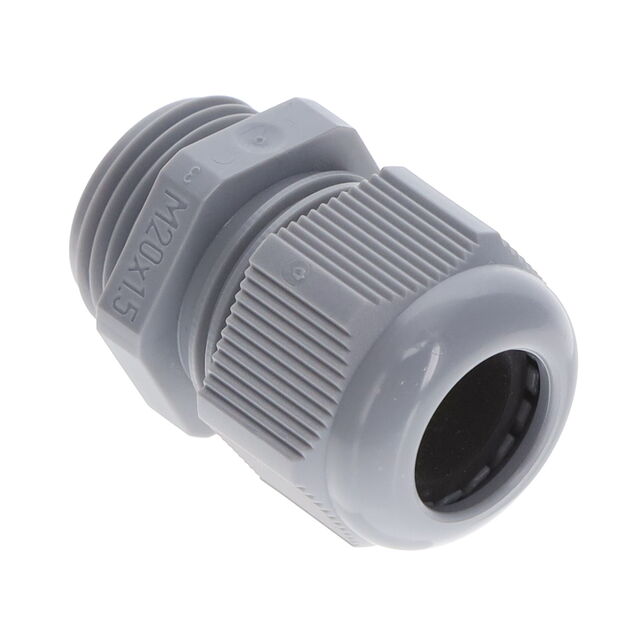

Jacob GmbH 50.620 PA7001	IP68 - Dust Tight Waterproof	0.315 "	8 mm	M20x1.5	0.315 in	8 mm	Gray	Cable Gland	-40 C	100 °C	0.512 in	13 mm	Sealing Ring

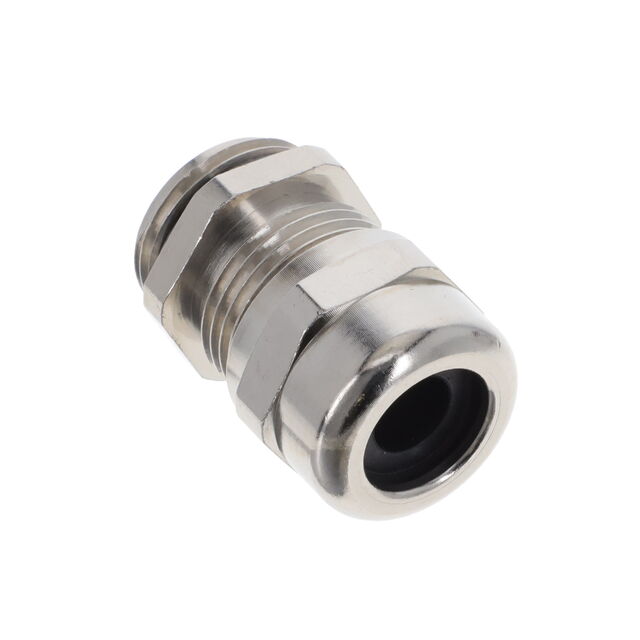

Jacob GmbH 50.620 M/R	IP68 - Dust Tight Waterproof	0.236 in	6 mm	M20x1.5			Silver	Cable Gland	-40 C	100 °C	0.512 in	13 mm	O-Ring Seal	Brass Nickel Plated	0.197 in	5 mm
