2M801-038 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K

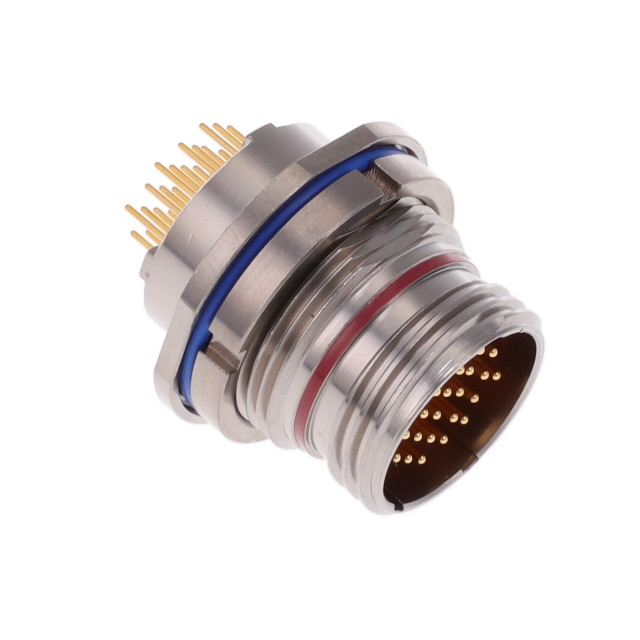

CONN RCPT MALE 26POS GOLD SOLDER
| Part | Shell Size - Insert (Minimum) | Shell Size - Insert (Maximum) | Termination | Contact Finish - Mating | Operating Temperature (Min) | Operating Temperature (Max) | Shell Finish | Insert Material | Primary Material | Number of Positions | Shielding | Mounting Type | Contact Material | Connector Type | Current Rating | Orientation | Shell Material | Mounting Feature | Fastening Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | 10 | 26 | Solder | Gold | -65 °C | 150 °C | Durmalon™ | Polyphenylene Sulfide PPS | Metal | 26 | Shielded | Panel Mount Through Hole | Copper Alloy | Male Pins Receptacle | 5 A | A | Aluminum | Bulkhead Front Side Nut | Threaded | |
Amphenol Aerospace Operations | 10 | 26 | Solder | Gold | -65 °C | 150 °C | Durmalon™ | Polyphenylene Sulfide PPS | Metal | 26 | Shielded | Panel Mount Through Hole | Copper Alloy | Female Sockets Receptacle | 5 A | A | Aluminum | Bulkhead Front Side Nut | Threaded | |

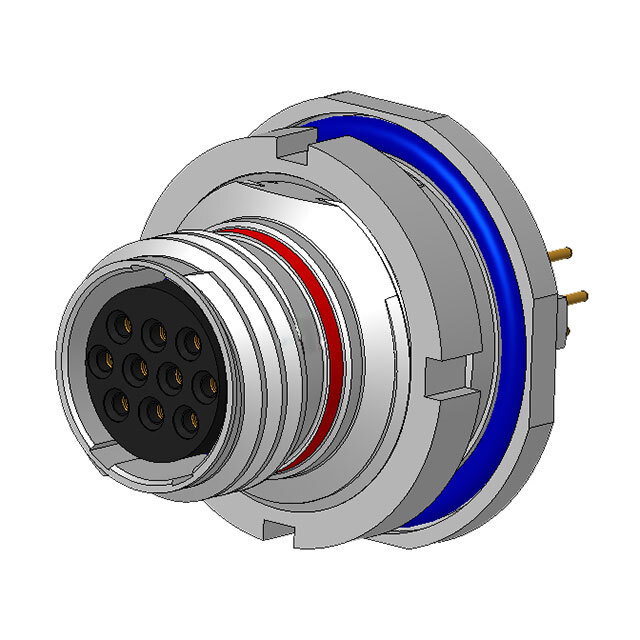

 Amphenol Aerospace Operations | 7 | 10 S | Solder | Gold | -65 °C | 150 °C | Electroless Nickel | Polyphenylene Sulfide PPS | Metal | 10 | Shielded | Panel Mount Through Hole | Copper Alloy | Female Sockets Receptacle | 5 A | A | Aluminum | Bulkhead Front Side Nut | Threaded | Silver |
