PXPPAM Series

Catalog

CONN M12 CIRCULAR SKT 3 POS SCREW ST CABLE MOUNT 3 TERMINAL 1 PORT BUCCANEER BULK

Part	Ingress Protection	Termination	Shell Finish	Contact Finish - Mating	Contact Material	Orientation	Backshell Material, Plating	Shell Size - Insert	Connector Type	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Applications	Color	Fastening Type	Primary Material	Features	Voltage Rating	Shell Material	Mounting Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Cable Opening [Max]	Cable Opening [Min]

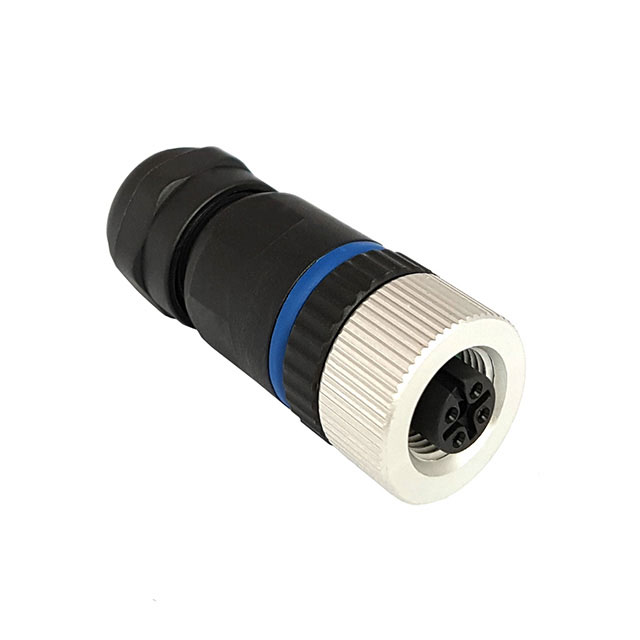

BULGIN LIMITED PXPPAM12FBF03ASTPG9	IP67 - Dust Tight Waterproof	Screw	Nickel	Gold	Phosphor Bronze	A	Nylon Polyamide (PA)	M12-3	Plug Female Sockets	8 mm	4.6 mm	0.181 in	0.315 in	Industrial Instrumentation Medical	Black Silver	Threaded	Metal	Backshell Coupling Nut	250 V	Brass	Free Hanging (In-Line)	4 A	-25 °C	80 °C

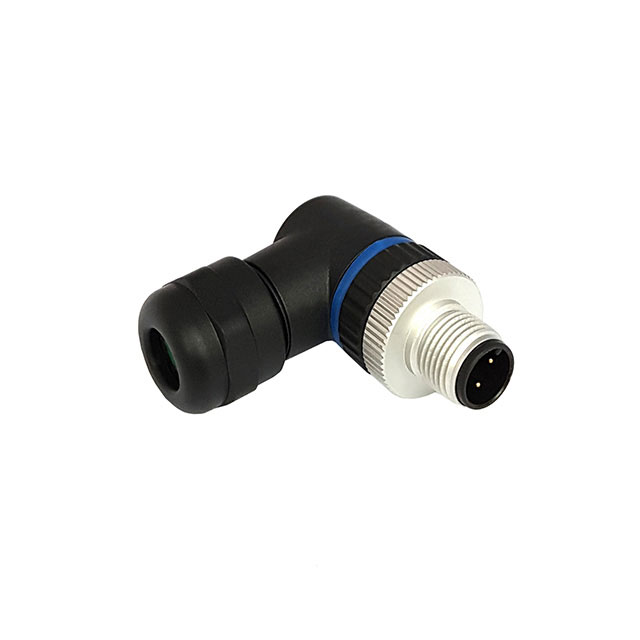

BULGIN LIMITED PXPPAM12RAM08ASTPG9	IP67 - Dust Tight Waterproof	Screw	Nickel	Gold	Brass	A	Nylon Polyamide (PA)	M12-8	Receptacle Male Pins	8 mm	4.6 mm	0.181 in	0.315 in	Industrial Instrumentation Medical	Black Silver	Threaded	Metal	Backshell	30 VDC	Brass	Free Hanging (In-Line) Right Angle	2 A	-25 °C	80 °C	8
BULGIN LIMITED PXPPAM12FBF08ASTPG9	IP67 - Dust Tight Waterproof	Screw	Nickel	Gold	Phosphor Bronze	A	Nylon Polyamide (PA)	M12-8	Plug Female Sockets	8 mm	4.6 mm	0.181 in	0.315 in	Industrial Instrumentation Medical	Black Silver	Threaded	Metal	Backshell Coupling Nut	30 VDC	Brass	Free Hanging (In-Line)	2 A	-25 °C	80 °C	8
BULGIN LIMITED PXPPAM12RAM05ASTPG9	IP67 - Dust Tight Waterproof	Screw	Nickel	Gold	Brass	A	Nylon Polyamide (PA)	M12-5	Receptacle Male Pins	8 mm	4.6 mm	0.181 in	0.315 in	Industrial Instrumentation Medical	Black Silver	Threaded	Metal	Backshell	60 VDC	Brass	Free Hanging (In-Line) Right Angle	4 A	-25 °C	80 °C	5
BULGIN LIMITED PXPPAM08FBF04AST	IP67 - Dust Tight Waterproof	Screw	Nickel	Gold	Phosphor Bronze	A	Nylon Polyamide (PA)	M8-4	Plug Female Sockets	3.5 mm	3 mm			Industrial	Black Silver	Threaded	Metal	Backshell Coupling Nut	30 VDC	Brass	Free Hanging (In-Line)	3 A	-25 °C	80 °C	4	0.138 in	0.118 in

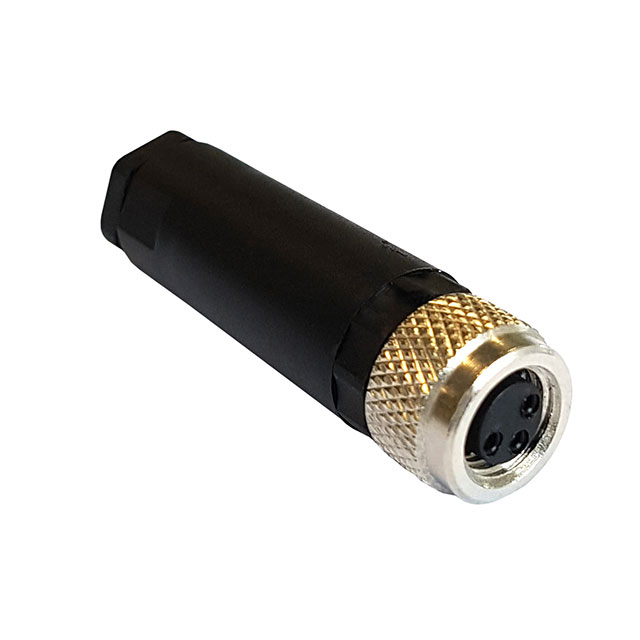

BULGIN LIMITED PXPPAM08FBF03AST	IP67 - Dust Tight Waterproof	Screw	Nickel	Gold	Phosphor Bronze	A	Nylon Polyamide (PA)	M8-3	Plug Female Sockets	3.5 mm	3 mm			Industrial	Black Silver	Threaded	Metal	Backshell Coupling Nut	60 VDC	Brass	Free Hanging (In-Line)	3 A	-25 °C	80 °C		0.138 in	0.118 in
BULGIN LIMITED PXPPAM12FBF04ASTPG9	IP67 - Dust Tight Waterproof	Screw	Nickel	Gold	Phosphor Bronze	A	Nylon Polyamide (PA)	M12-4	Plug Female Sockets	8 mm	4.6 mm	0.181 in	0.315 in	Industrial Instrumentation Medical	Black Silver	Threaded	Metal	Backshell Coupling Nut	250 V	Brass	Free Hanging (In-Line)	4 A	-25 °C	80 °C	4
