P70-10000 Series
Manufacturer: Harwin Inc.
Beta
⌘K

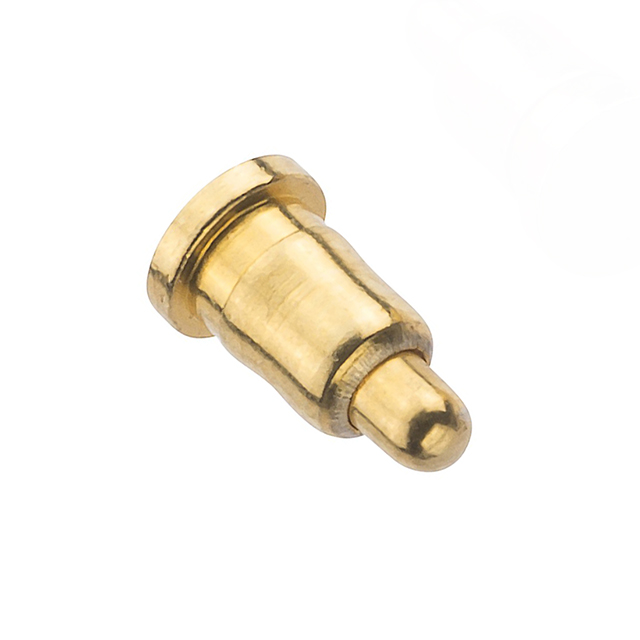

CONTACT, SPRING LOADED PIN, POINT, 2 A, 3.5 MM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Plunger Size [diameter] | Plunger Size [diameter] | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Type | Current Rating (Amps) | Mating Cycles | Operating Force - Mid Compression | Minimum Working Height | Minimum Working Height | Pad Layout Dimension | Pad Layout Dimension | Pad Layout Dimension | Recommended Working Height | Recommended Working Height | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 85 °C | -40 C | 0.035 in | 0.9 mm | 0.118 in | 3 mm | Sleeve & Plunger (Pogo Pins) | 2 A | 10000 | 89.74 gf | 0.106 in | 2.7 mm | 2.2 mm | Circular | 0.087 in | 0.114 in | 2.9 mm | 16 µin | 0.41 µm | Gold | Surface Mount | Brass |
