895-140 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 140POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Contact Finish	Contact Material	Number of Positions/Bay/Row [custom]	Mounting Type	Termination	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Number of Rows [custom]	Contact Type	Color	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Read Out	Number of Positions	Flange Feature	Features
EDAC Inc. 895-140-542-804	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Female	Gold	Copper Alloy	70	Through Hole	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Cantilever	Black	0.156 "	3.96 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	140
EDAC Inc. 895-140-540-207	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Female	Gold	Copper Alloy	70	Through Hole	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Cantilever	Black			0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	140	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 895-140-556-808	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Female	Gold	Copper Alloy	70	Board Edge Straddle Mount	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Cantilever	Black			0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	140	4-40 Threaded Insert Top Mount Opening	Card Extender
EDAC Inc. 895-140-525-203	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Female	Gold	Copper Alloy	70	Through Hole	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Cantilever	Black	0.116 "	2.95 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	140	Floating Bobbin Flush Mount

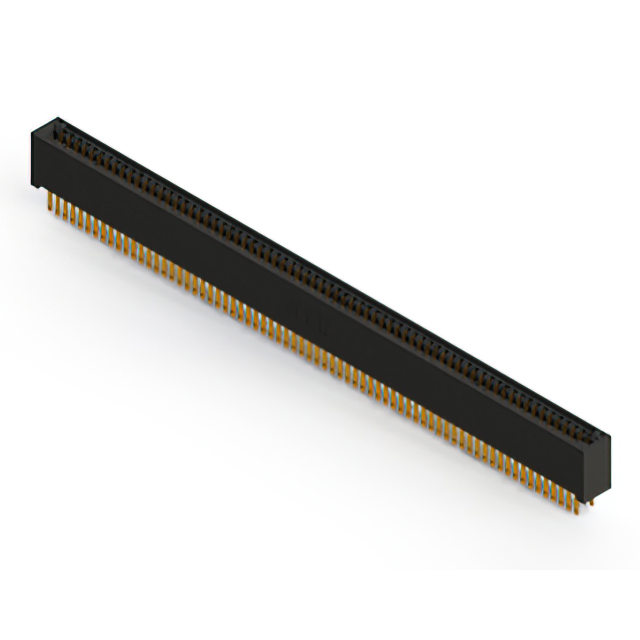

EDAC Inc. 895-140-500-201	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Female	Gold	Copper Alloy	70	Through Hole	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Cantilever	Black			0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	140
EDAC Inc. 895-140-525-812	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Female	Gold	Copper Alloy	70	Through Hole	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Cantilever	Black	0.128 "	3.25 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	140	Side Mount Opening Unthreaded
EDAC Inc. 895-140-541-804	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Female	Gold	Copper Alloy	70	Through Hole	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Cantilever	Black	0.156 "	3.96 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	140

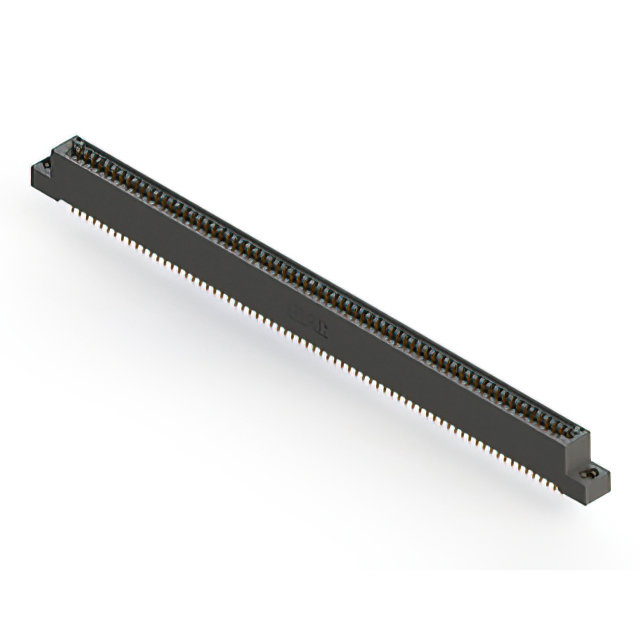

EDAC Inc. 895-140-556-208	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Female	Gold	Copper Alloy	70	Board Edge Straddle Mount	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Cantilever	Black			0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	140	4-40 Flush Mount Threaded Insert Top Opening	Card Extender
EDAC Inc. 895-140-540-812	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Female	Gold	Copper Alloy	70	Through Hole	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Cantilever	Black	0.128 "	3.25 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	140	Side Mount Opening Unthreaded
EDAC Inc. 895-140-541-508	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Female	Gold	Copper Alloy	70	Through Hole	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Cantilever	Black			0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	140	4-40 Threaded Insert Top Mount Opening
