1658611 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN D-SUB PLUG 9POS IDC
| Part | Contact Material | Wire Gauge [Min] | Wire Gauge [Max] | Wire Gauge | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Number of Rows | Connector Style | Current Rating (Amps) | Mounting Type | Material Flammability Rating | Termination | Flange Feature | Features | Number of Positions | Contact Finish | Color | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

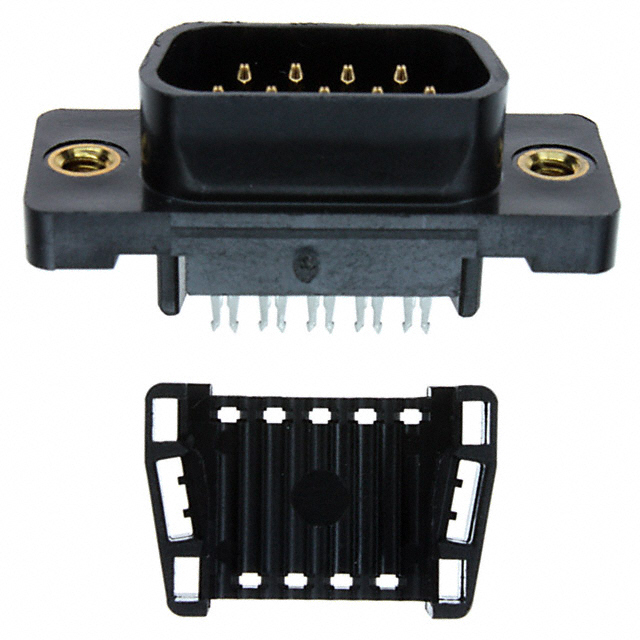

 TE Connectivity Raychem Cable Protection | Phosphor Bronze | 26 AWG | 28 AWG | Solid Stranded | Signal | 105 ░C | -55 °C | DE E | 1 | Male Pins Plug | 2 | D-Sub | 1.25 A | Free Hanging (In-Line) | UL94 V-0 | IDC Ribbon Cable | Housing/Shell (4-40) | Feed Through | 9 | Gold | Black | Thermoplastic |

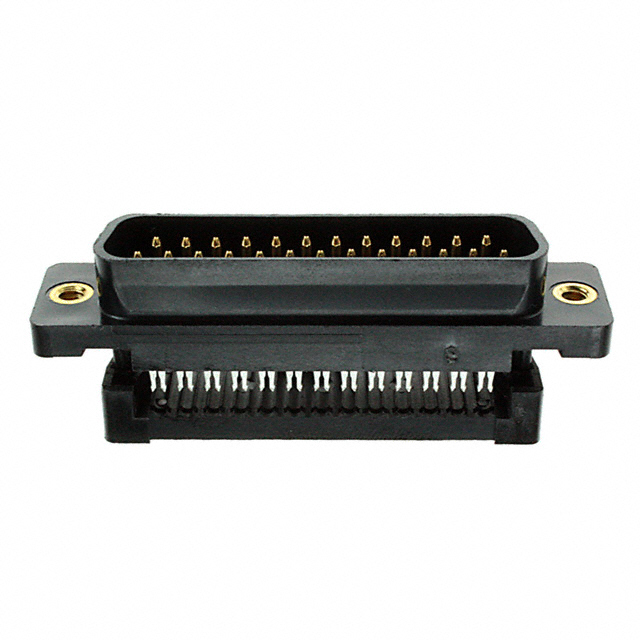

 TE Connectivity Raychem Cable Protection | Phosphor Bronze | 26 AWG | 28 AWG | Solid Stranded | Signal | 105 ░C | -55 °C | B DB | 3 | Male Pins Plug | 2 | D-Sub | 1.25 A | Free Hanging (In-Line) | UL94 V-0 | IDC Ribbon Cable | Housing/Shell (4-40) | Feed Through | Gold | Black | Thermoplastic |
