2703-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

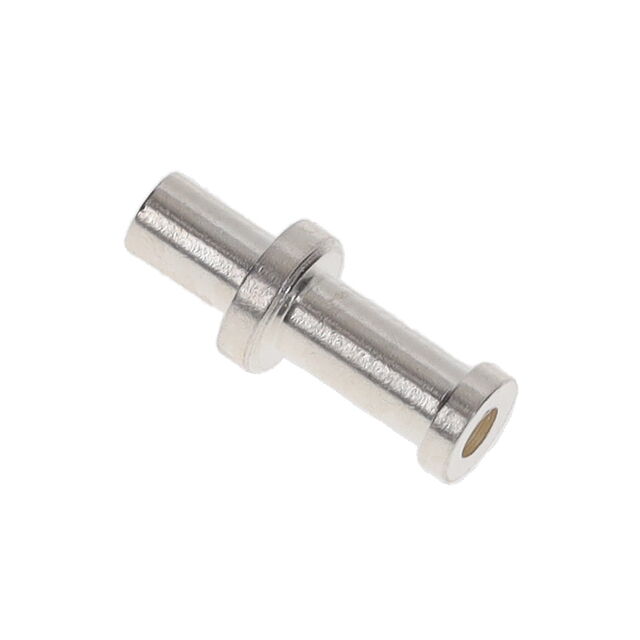

TERM TURRET SINGLE L=8.33MM
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Length - Overall [x] | Length - Overall [x] | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Board Thickness | Board Thickness | Contact Material | Staking Side OD [diameter] | Staking Side OD [diameter] | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Mounting Type | Staking Side ID [diameter] | Staking Side ID [diameter] | Terminal Type | Insulation | Number of Turrets | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 3.96 mm | 0.156 in | Swage | 11.81 mm | 0.465 in | 300 µin | 7.62 µm | 0.137 in | 3.48 mm | 2.39 mm | 0.094 " | 0.094 in | 2.39 mm | Brass Alloy | 0.091 in | 2.31 mm | 0.12 in | 3.05 mm | Through Hole | 1.63 mm | 0.064 " | Single End | Non-Insulated | Single | Tin-Lead |
 Mill-Max Manufacturing Corp. | 3.96 mm | 0.156 in | Swage | 11.81 mm | 0.465 in | 300 µin | 7.62 µm | 0.137 in | 3.48 mm | 2.39 mm | 0.094 " | 0.094 in | 2.39 mm | Brass Alloy | 0.091 in | 2.31 mm | 0.12 in | 3.05 mm | Through Hole | 1.63 mm | 0.064 " | Single End | Non-Insulated | Single | Silver |
