071741 Series

Manufacturer: Molex

Catalog

CONN PLUG 84POS SMD GOLD

Part	Number of Rows	Features	Mounting Type	Number of Positions	Contact Finish	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights [z]	Height Above Board [z]	Height Above Board [z]
Molex 0717410004	2	Board Guide	Surface Mount	84	Gold	8.3 mm	0.327 in	0.039 in	1 mm	10 mm 12 mm 15 mm	0.76 Ám	30 Áin

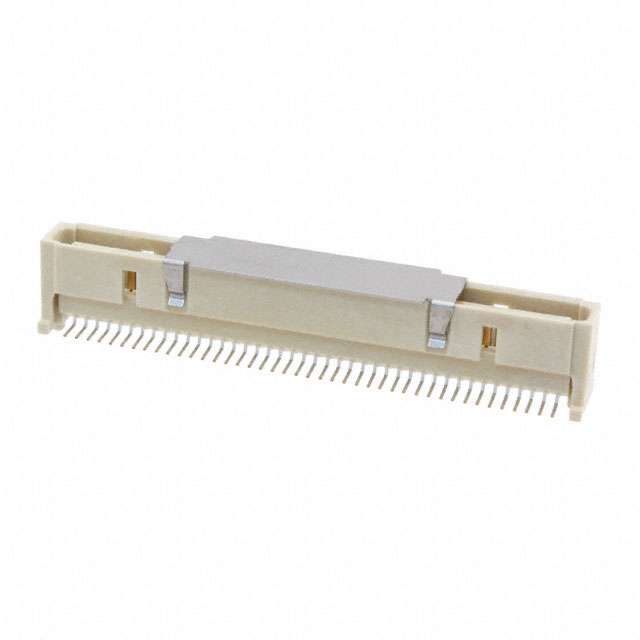

Molex 0717410002	2	Board Guide	Surface Mount	84	Gold	8.3 mm	0.327 in	0.039 in	1 mm	10 mm 12 mm 15 mm	0.25 Ám	10 Áin

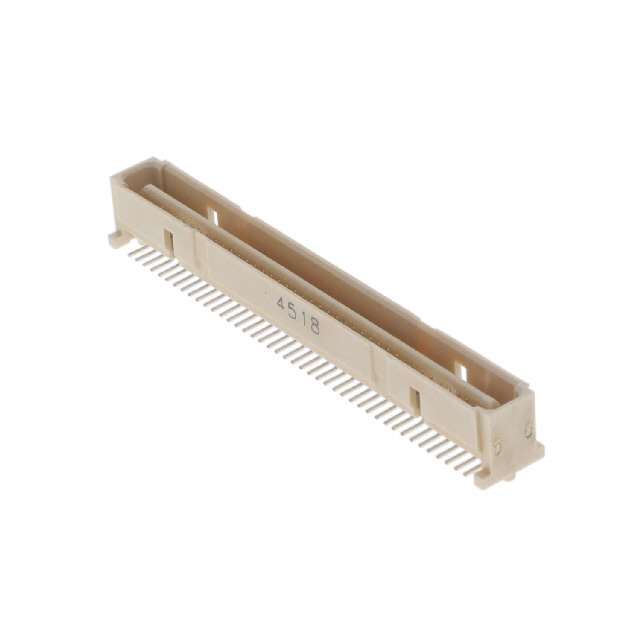

Molex 0717412001	2	Board Guide	Surface Mount	84	Gold			0.039 in	1 mm		0.76 Ám	30 Áin	8 mm 13 mm	0.248 "	6.3 mm
