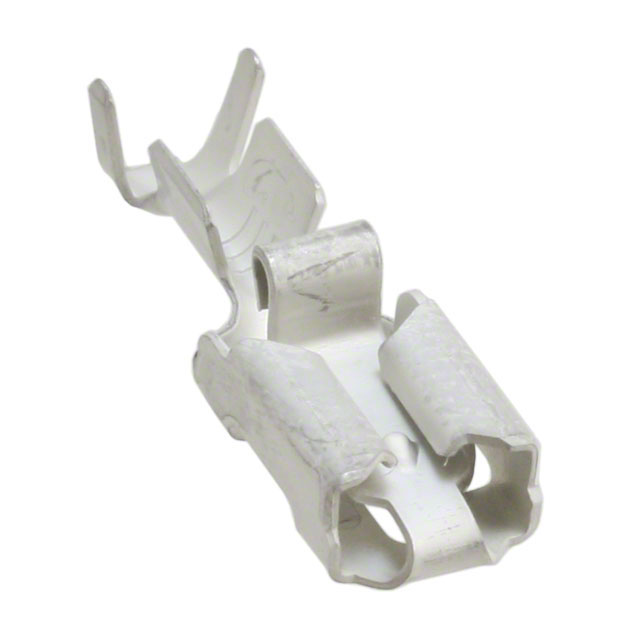

160831 Series

Catalog

CONN QC RCPT 13.5-17AWG 0.250

Part	Insulation	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Mounting Type	Contact Material	Tab Width	Tab Width	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter	Gender	Terminal Type	Length - Overall [x]	Length - Overall [x]	Tab Thickness	Tab Thickness
TE Connectivity Raychem Cable Protection 160831-1	Non-Insulated	Crimp	14 AWG	17 AWG	Tin	Free Hanging (In-Line)	Brass	6.35 mm	0.25 in	0.169 in	0.118 in	3 mm 4.29 mm	Female	Standard	0.878 in	22.3 mm	0.032 in	0.81 mm
TE Connectivity Raychem Cable Protection 160831-9	Non-Insulated	Crimp	14 AWG	17 AWG		Free Hanging (In-Line)	Nickel Silver	6.35 mm	0.25 in	0.169 in	0.118 in	3 mm 4.29 mm	Female	Standard	0.878 in	22.3 mm	0.032 in	0.81 mm
TE Connectivity Raychem Cable Protection 160831-3	Non-Insulated	Crimp	14 AWG	17 AWG	Tin	Free Hanging (In-Line)	Brass	6.35 mm	0.25 in	0.169 in	0.118 in	3 mm 4.29 mm	Female	Standard	0.878 in	22.3 mm	0.032 in	0.81 mm
