ASMF-LWG4 Series

Catalog

LED COOL WHITE 6200K 3030

Part	Thermal Resistance of Package	Voltage - Forward (Vf) (Typ)	Color	Package / Case	Package / Case	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Mounting Type	Current - Max [Max]	Flux @ 25°C, Current - Test	Viewing Angle	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max)	CRI (Color Rendering Index)	CCT (K)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]
Broadcom Limited ASMF-LWG4-NRUGD	15 °C/W	2.9 V	Cool White	3030 Metric	1212	143 lm/W	3 mm	0.118 in	3 mm	0.118 "	65 mA	Surface Mount	240 mA	27 lm	120 °	3030	0.031 in	0.8 mm	80

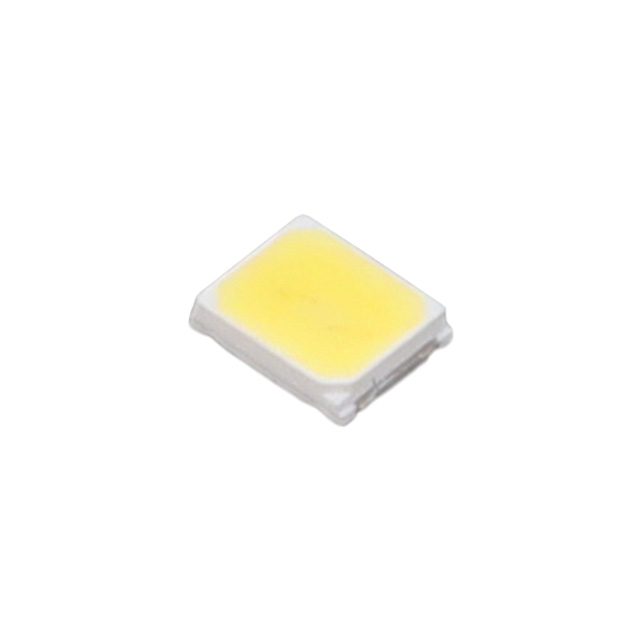

Broadcom Limited ASMF-LWG4-NRUHD	15 °C/W	2.9 V	Cool White	3030 Metric	1212	143 lm/W	3 mm	0.118 in	3 mm	0.118 "	65 mA	Surface Mount	240 mA	27 lm	120 °	3030	0.031 in	0.8 mm	80	6500 K
Broadcom Limited ASMF-LWG4-NRUJD	15 °C/W	2.9 V	Cool White	3030 Metric	1212	143 lm/W	3 mm	0.118 in	3 mm	0.118 "	65 mA	Surface Mount	240 mA	27 lm	120 °	3030	0.031 in	0.8 mm	80	6800 K
Broadcom Limited ASMF-LWG4-NQTBD	15 °C/W	2.9 V	Warm White	3030 Metric	1212	138 lm/W	3 mm	0.118 in	3 mm	0.118 "	65 mA	Surface Mount	240 mA	26 lm	120 °	3030	0.031 in	0.8 mm	80	3000 K	30 lm	22 lm
