6064C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

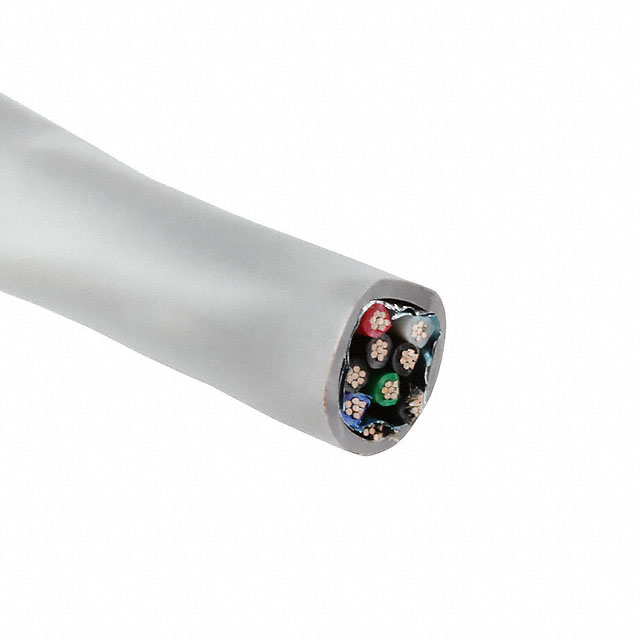

MULTI-PAIR 8CON 18AWG SLATE
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Features | Cable Type | Number of Conductors | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Jacket Color | Jacket (Insulation) Material | Conductor Material | Voltage | Shield Type | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 16 | 30 AWG | Drain Wire | Multi-Pair | 8 | UL Style 2464 | 11.58 mm | 0.456 in | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 0.053 " | 1.346 mm | 152.4 m | 500 ft | Slate | Poly-Vinyl Chloride (PVC) | Copper Tinned | 300 VDC | Foil | 18 AWG | ||
ALPHA WIRE | Aluminum | 100 % | 16 | 30 AWG | Drain Wire | Multi-Pair | 8 | UL Style 2464 | 11.58 mm | 0.456 in | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 0.053 " | 1.346 mm | Slate | Poly-Vinyl Chloride (PVC) | Copper Tinned | 300 VDC | Foil | 18 AWG | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum | 100 % | 16 | 30 AWG | Drain Wire | Multi-Pair | 8 | UL Style 2464 | 11.58 mm | 0.456 in | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 0.053 " | 1.346 mm | 304.8 m | 1000 ft | Slate | Poly-Vinyl Chloride (PVC) | Copper Tinned | 300 VDC | Foil | 18 AWG |
