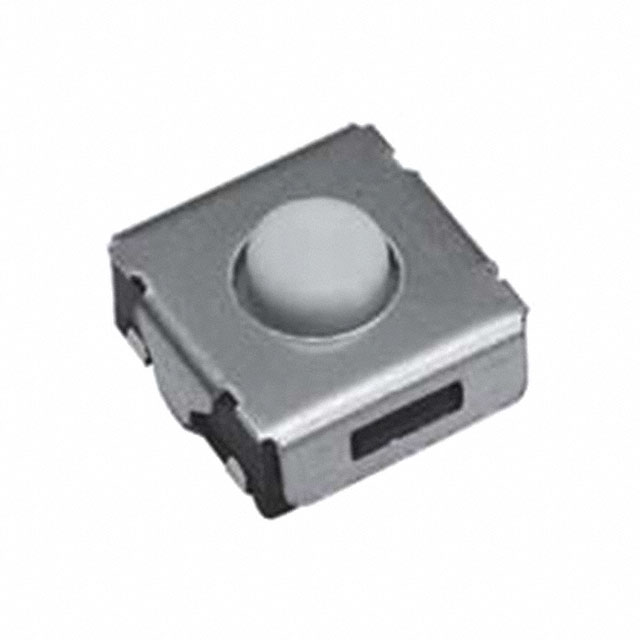

SMTE3 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH TACTILE SPST-NO 0.03A 24V
| Part | Mechanical Life | Switch Travel | Mounting Type | Actuator Type | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Illumination | Features | Switch Function | Actuator Height off PCB, Vertical [z] | Contact Rating @ Voltage | Operating Force | Actuator Orientation | Outline [x] | Outline [y] | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 100000 Cycles | 0.5 mm | Surface Mount | Standard | J Lead | -25 °C | 70 °C | Non-Illuminated | Washable | Off-Mom | 3.5 mm | 0.03 A 24 VDC | 0.2 kgf | Top Actuated | 7 mm | 6.8 mm | SPST-NO |
