6E17C009 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB PLUG 9POS R/A SOLDER
| Part | Contact Finish | Current Rating (Amps) | Contact Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Dielectric Material | Connector Style | Color | Connector Type | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Backset Spacing | Backset Spacing | Contact Type | Number of Positions | Features | Flange Feature | Flange Feature | Mounting Type | Shell Material, Finish | Number of Rows [custom] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

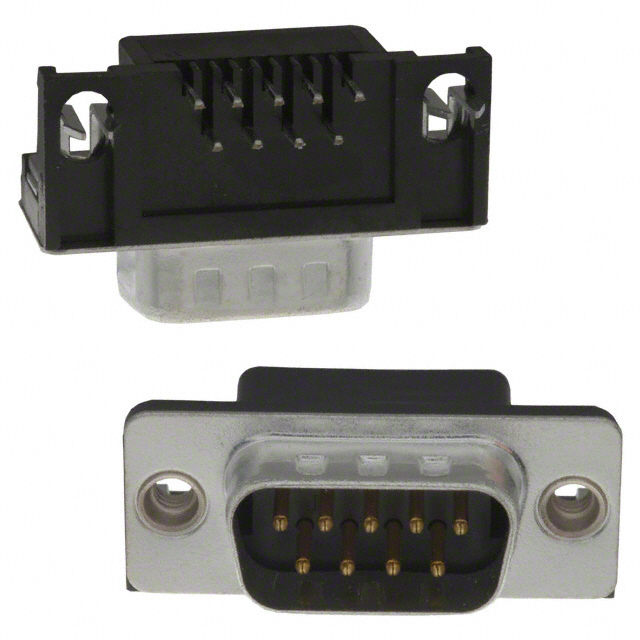

 Amphenol ICC (Commercial Products) | Gold | 5 A | Copper Alloy | 1 | DE E | Glass Filled Nylon Polyamide (PA) | D-Sub | Black | Plug Male Pins | UL94 V-0 | 30 Áin | 0.76 Ám | -55 C | 105 ░C | 8.08 mm | 0.318 " | Signal | 9 | Board Lock Grounding Indents Shielded | Housing/Shell | 4-40 | Right Angle Through Hole | Nickel Plated Steel | 2 | Solder |
 Amphenol ICC (Commercial Products) | Gold | 5 A | Copper Alloy | 1 | DE E | Glass Filled Nylon Polyamide (PA) | D-Sub | Black | Receptacle Female Sockets | UL94 V-0 | 3 µin | 0.076 Ám | -55 C | 105 ░C | 8.08 mm | 0.318 " | Signal | 9 | Board Lock Shielded | Housing/Shell | 4-40 | Right Angle Through Hole | Nickel Plated Steel | 2 | Solder |

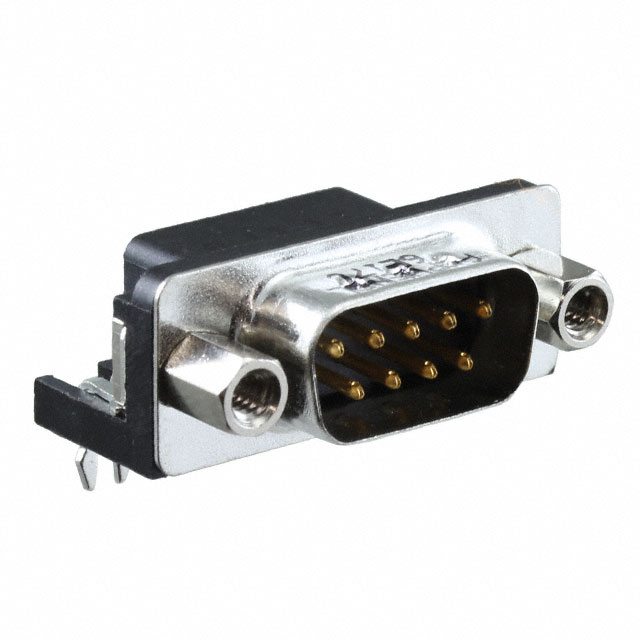

 Amphenol ICC (Commercial Products) | Gold | 5 A | Copper Alloy | 1 | DE E | Glass Filled Nylon Polyamide (PA) | D-Sub | Black | Plug Male Pins | UL94 V-0 | 3 µin | 0.076 Ám | -55 C | 105 ░C | 8.08 mm | 0.318 " | Signal | 9 | Board Lock Grounding Indents | 4-40 Mating Side Female Screwlock | Right Angle Through Hole | Nickel Plated Steel | 2 | Solder | |

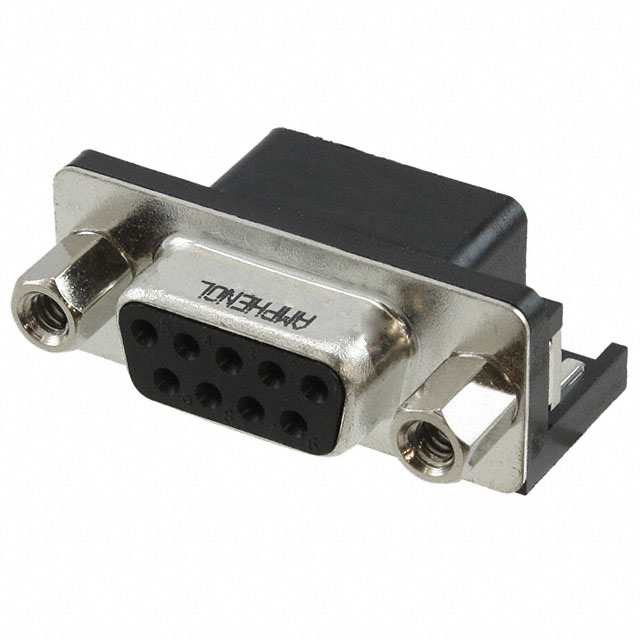

 Amphenol ICC (Commercial Products) | Gold | 5 A | Copper Alloy | 1 | DE E | Glass Filled Nylon Polyamide (PA) | D-Sub | Black | Receptacle Female Sockets | UL94 V-0 | 30 Áin | 0.76 Ám | -55 C | 105 ░C | 8.08 mm | 0.318 " | Signal | 9 | Board Lock Shielded | 4-40 Mating Side Female Screwlock | Right Angle Through Hole | Nickel Plated Steel | 2 | Solder | |
 Amphenol ICC (Commercial Products) | Gold | 5 A | Copper Alloy | 1 | DE E | Glass Filled Nylon Polyamide (PA) | D-Sub | Black | Plug Male Pins | UL94 V-0 | 30 Áin | 0.76 Ám | -55 C | 105 ░C | 8.08 mm | 0.318 " | Signal | 9 | Board Lock Grounding Indents Shielded | 4-40 Mating Side Female Screwlock | Right Angle Through Hole | Nickel Plated Steel | 2 | Solder |
