WR9QI750 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

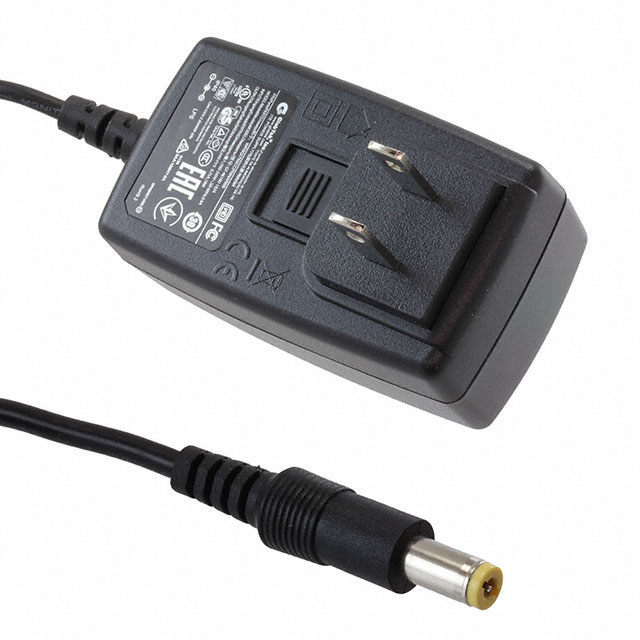

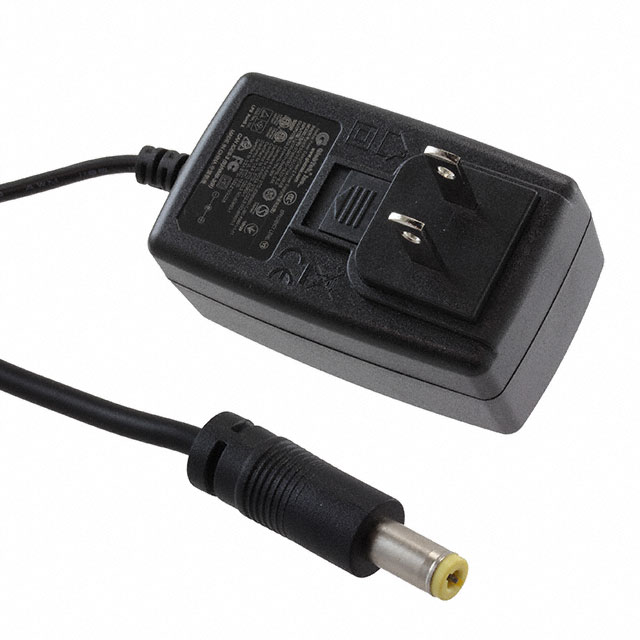

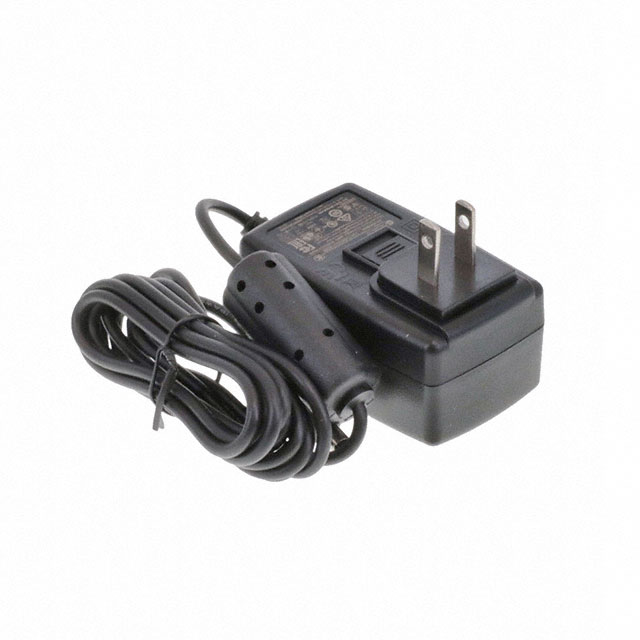

AC/DC WALL MOUNT ADAPTER 24V 18W
| Part | Output Connector | Output Connector Length | Output Connector I.D. | Output Connector O.D. | Voltage - Output | Applications | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Operating Temperature (Max) | Operating Temperature (Min) | Region Utilized | Power (Watts) | Approval Agency | Form | No Load Power Consumption (Max) | Input Connector | Cord Length | Efficiency | Input Type | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Polarization | Current - Output (Max) | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | Barrel Plug | 13.8 mm | 2.1 mm | 5.5 mm | 24 V | Household Appliances ITE (Commercial) Medical | 2.91 in | 1.45 in | 1.71 in | 40 °C | -20 °C | International | 18 W | BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI | Wall Mount (Class II) | 75 mW | Multi-Blade | 60.2 in | CoC Tier 2 Level VI | Multi-Blade (Sold Separately) | 90 V | 264 V | Positive Center | 750 mA | |
 GlobTek, Inc. | Barrel Plug | 11 mm | 2.1 mm | 5.5 mm | 24 V | ITE (Commercial) | 2.91 in | 1.34 in | 1.71 in | 40 °C | 0 °C | International | 18 W | BSMI CB CCC CE cULus EAC FCC LPS PSE RCM UKRSepro VCCI | Wall Mount (Class II) | 75 mW | Multi-Blade (Sold Separately) | 59 in | Level VI | Multi-Blade (Sold Separately) | 90 V | 264 V | Positive Center | 750 mA | 60950-1 62368-1 |
 GlobTek, Inc. | Barrel Plug | 11 mm | 2.5 mm | 5.5 mm | 24 V | ITE (Commercial) | 2.91 in | 1.34 in | 1.71 in | 40 °C | 0 °C | International | 18 W | BSMI CB CCC CE cULus EAC FCC LPS PSE RCM UKRSepro VCCI | Wall Mount (Class II) | 75 mW | Multi-Blade (Sold Separately) | 72 in | Level VI | Multi-Blade (Sold Separately) | 90 V | 264 V | Positive Center | 750 mA | 60950-1 62368-1 |
 GlobTek, Inc. | Barrel Plug | 11 mm | 2.1 mm | 5.5 mm | 24 V | Household Appliances ITE (Commercial) Medical | 2.91 in | 1.45 in | 1.71 in | 40 °C | -20 °C | International | 18 W | BIS CAN ICES CB CCC CE cETLus EAC ETL IRAM LPS NOM PSE RCM S-Mark UKRSepro UL VCCI | Wall Mount (Class II) | 75 mW | Multi-Blade (Sold Separately) | 60.2 in | Level VI | Multi-Blade (Sold Separately) | 90 V | 264 V | Positive Center | 750 mA | 1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1 |
