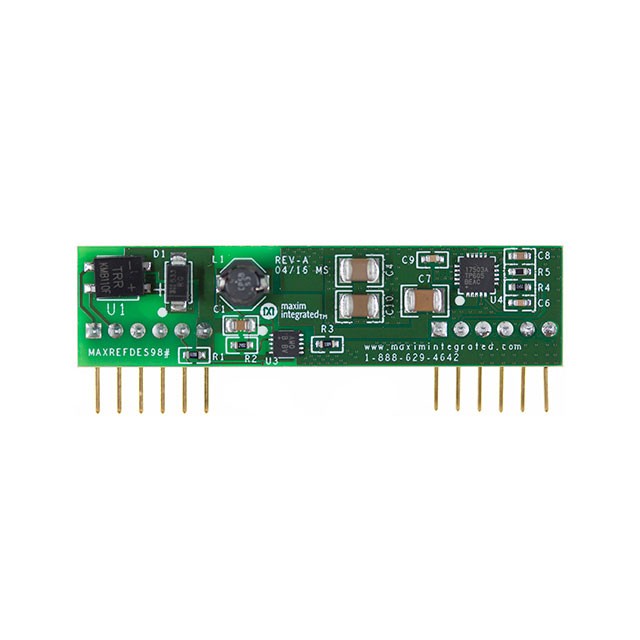

MAXREFDES98 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
REF DESIGN POE MAX5969A MAX17503
| Part | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Power - Output [x] | Regulator Topology | Contents | Frequency - Switching | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output | Power - Output | Voltage - Output | Main Purpose | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | 12.5 W | Buck | Board(s) | 300 kHz | 36 V | 57 V | 2.5 A | 12.5 W | 5 V | Special Purpose DC/DC Power Over Ethernet | MAX17503 MAX5969A |
