Non-Isolated DC/DC Converters 2.4-5.5Vin 6A 0.6-3.63Vout
Non-Isolated DC/DC Converters 2.4-5.5Vin 6A 0.6-3.63Vout
| Part | Package / Case | Mounting Type | Voltage - Output 1 [Max] [custom] | Voltage - Output 1 [Min] [custom] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Input (Max) [Max] | Power (Watts) | Control Features | Features | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Number of Outputs | Voltage - Input (Min) [Min] | Efficiency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

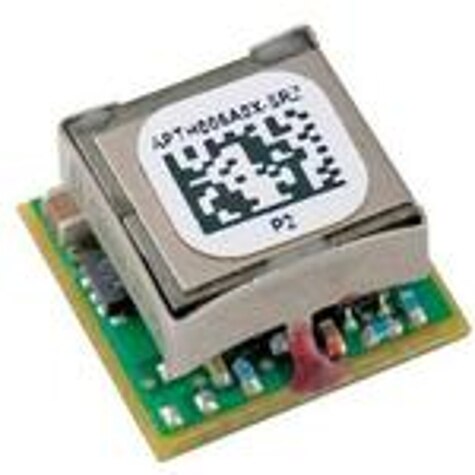

 OmniOn Power™ | 10-SMD Module | Surface Mount | 3.6 V | 0.6 V | ITE (Commercial) | 85 °C | -40 C | Non-Isolated PoL Module | 5.5 V | 21 W | Active High Enable | OCP OTP Remote On/Off UVLO | 6 A | 0.48 in | 7.3 mm | 0.29 in | 0.48 in | 12.2 mm | 12.2 mm | 1 | 2.4 V | ||||

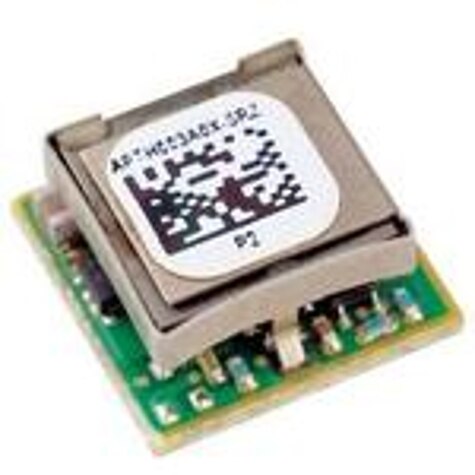

 OmniOn Power™ | 10-SMD Module | Surface Mount | 3.6 V | 0.6 V | ITE (Commercial) | 85 °C | -40 C | Non-Isolated PoL Module | 5.5 V | 10 W | Active High Enable | OCP OTP Remote On/Off UVLO | 3 A | 6.35 mm | 0.48 in | 0.48 " | 1 | 2.4 V | 94 % | 12.2 mm | 6.3 mm | 12.2 mm | |||
OmniOn Power™ | 10-SMD Module | Surface Mount | 3.6 V | 0.6 V | ITE (Commercial) | 85 °C | -40 C | Non-Isolated PoL Module | 5.5 V | 21 W | Active High Enable | OCP OTP Remote On/Off UVLO | 6 A | 0.48 in | 7.3 mm | 0.29 in | 0.48 in | 12.2 mm | 12.2 mm | 1 | 2.4 V |
