NRPN212 Series

Catalog

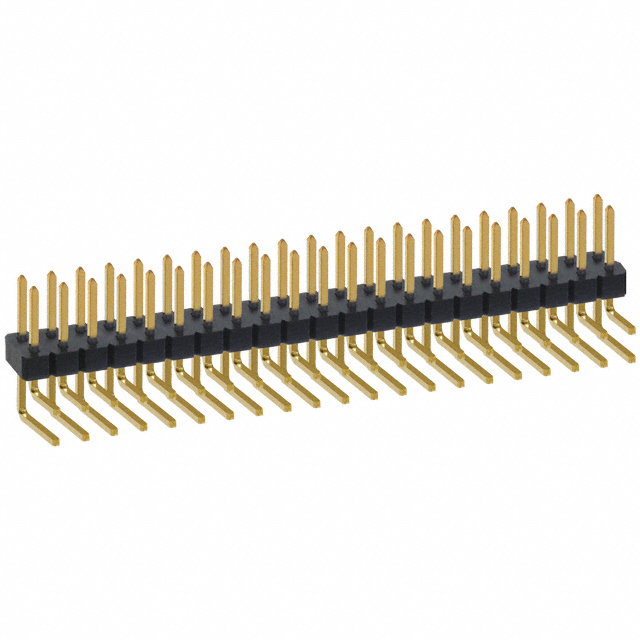

CONN HEADER R/A 42POS 2MM

Part	Contact Finish Thickness - Post	Contact Length - Post [custom]	Contact Length - Post	Voltage Rating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Connector Type	Contact Finish Thickness - Mating	Contact Material	Style	Contact Finish - Mating	Number of Positions Loaded	Number of Positions	Mounting Type	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]	Contact Type	Termination	Fastening Type	Contact Shape	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Insulation Color	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Features	Insulation Height	Insulation Height
Sullins Connector Solutions NRPN212PARN-RC	Flash	0.11 in	2.79 mm	150 VDC	UL94 V-0	-40 C	105 ░C	Unshrouded	Header	Flash	Brass	Board to Board Cable	Gold	All	42	Right Angle Through Hole	2 A	0.141 in	3.6 mm	4 mm	0.157 in	Male Pin	Solder	Push-Pull	Square	Gold	0.079 "	2 mm	2	Black	Nylon 6T Polyamide (PA6T)	2 mm	0.079 in
Sullins Connector Solutions NRPN212MAMP-RC	Flash			150 VDC	UL94 V-0	-40 C	105 ░C	Unshrouded	Header	Flash	Brass	Board to Board Cable	Gold	All	42	Surface Mount	2 A	0.141 in	3.6 mm			Male Pin	Solder	Push-Pull	Square	Gold	0.079 "	2 mm	2		Nylon 6T Polyamide (PA6T)	2 mm	0.079 in	Board Guide	0.059 in	1.5 mm
