3137-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

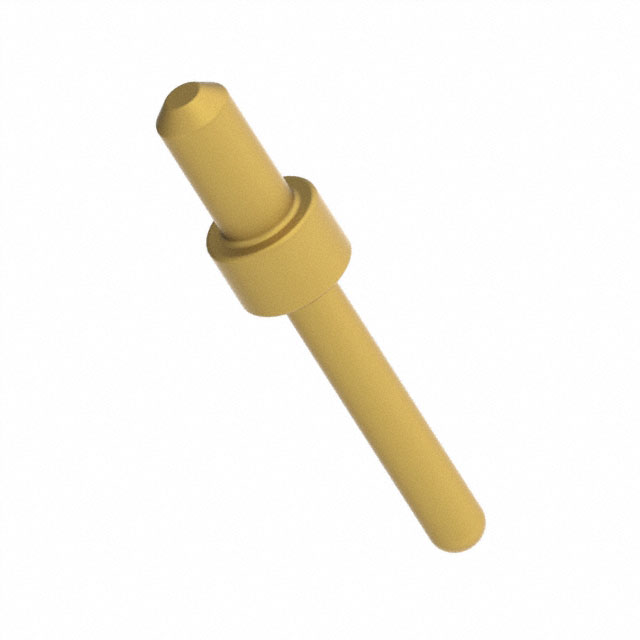

CONN PC PIN CIRC
| Part | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type | Board Thickness | Board Thickness | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Contact Material | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Length - Overall [x] | Length - Overall [x] | Termination | Length - Above Flange | Length - Above Flange [x] | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Double End | 1.57 mm | 0.062 in | Through Hole | 1.57 mm | 0.062 " | PC Pin | 200 Áin | 5.08 Ám | 0.18 " | 4.57 mm | 0.03 in | 0.76 mm | Brass Alloy | 0.04 in | 1.02 mm | 0.043 in | 1.09 mm | Tin | 0.302 " | 7.67 mm | Solder | 2.08 mm | 0.082 in | Non-Insulated |
 Mill-Max Manufacturing Corp. | Double End | 1.57 mm | 0.062 in | Through Hole | 1.57 mm | 0.062 " | PC Pin | 200 Áin | 5.08 Ám | 0.18 " | 4.57 mm | 0.03 in | 0.76 mm | Brass Alloy | 0.04 in | 1.02 mm | 0.043 in | 1.09 mm | Tin-Lead | 0.302 " | 7.67 mm | Solder | 2.08 mm | 0.082 in | Non-Insulated |
 Mill-Max Manufacturing Corp. | Double End | 1.57 mm | 0.062 in | Through Hole | 1.57 mm | 0.062 " | PC Pin | 10 Áin | 0.25 Ám | 0.18 " | 4.57 mm | 0.03 in | 0.76 mm | Brass Alloy | 0.04 in | 1.02 mm | 0.043 in | 1.09 mm | Gold | 0.302 " | 7.67 mm | Solder | 2.08 mm | 0.082 in | Non-Insulated |
