R21342 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

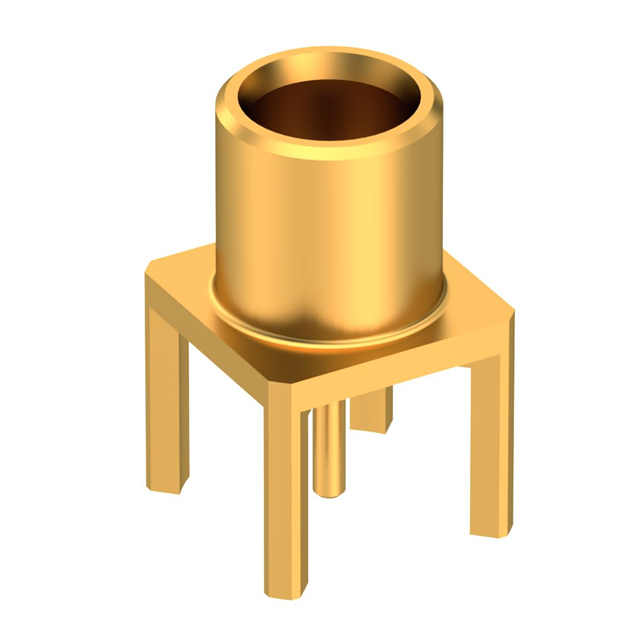

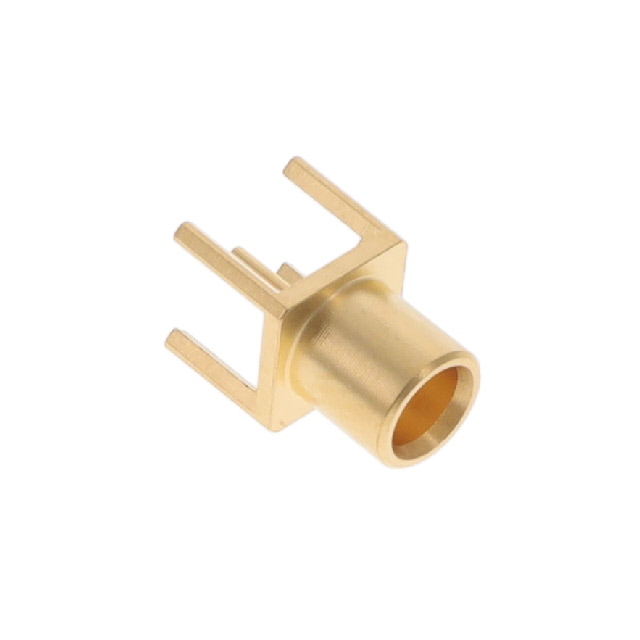

MCX / STRAIGHT JACK RECEPTACLE F
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Dielectric Material | Mating Cycles | Center Contact Plating | Voltage Rating | Body Material | Connector Type | Frequency - Max [Max] | Fastening Type | Shield Termination | Connector Style | Contact Termination | Number of Ports | Center Contact Material | Impedance | Mounting Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 155 C | -55 C | Gold | Polyetheretherketone (PEEK) | 500 | Gold | 335 V | Brass | Female Socket Jack | 6000 MHz | Snap-On | Solder | MCX | Solder | 1 | Beryllium Copper | 75 Ohms | Surface Mount | Gold |
 Radiall USA, Inc. | 155 C | -55 C | Gold | Polyetherimide (PEI) | 500 | Gold | 335 V | Brass | Female Socket Jack | 6000 MHz | Snap-On | Solder | MCX | Solder | 1 | Beryllium Copper Brass | 75 Ohms | Through Hole | Gold |
 Radiall USA, Inc. | |||||||||||||||||||
 Radiall USA, Inc. | 155 C | -55 C | Gold | Polyetherimide (PEI) | 500 | Gold | 335 V | Brass | Female Socket Jack | 6000 MHz | Snap-On | Solder | MCX | Solder | 1 | Beryllium Copper | 75 Ohms | Through Hole | Gold |
