M80-522 Series

Catalog

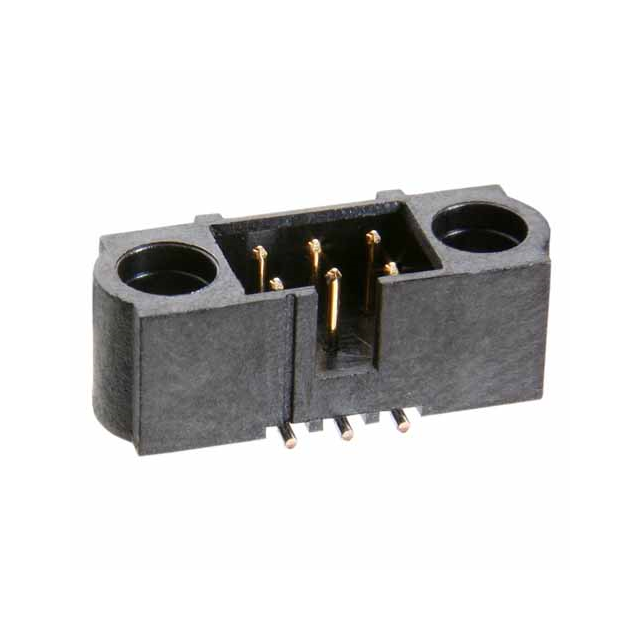

HEADER CONNECTOR,PCB MOUNT,RECEPT,12 CONTACTS,PIN,0.079 PITCH,SURFACE MOUNT TERMINAL,GUIDE SLOT ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mated Stacking Heights	Insulation Color	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Mounting Type	Contact Material	Contact Finish - Mating	Fastening Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Shrouding	Pitch - Mating	Pitch - Mating	Features	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Number of Rows [custom]	Number of Positions Loaded	Contact Shape	Style	Connector Type	Current Rating (Amps)	Contact Finish - Post	Contact Type	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions [custom]
Harwin Inc. M80-5221242	118.1 µin	3 µm	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Black	29.5 µin	0.75 µm	Surface Mount	Phosphor Bronze	Gold	Push-Pull	Solder	-55 C	125 °C	800 V	Shrouded - 4 Wall	0.079 "	2 mm	Keying Slot Mating Flange	5.6 mm	0.22 in	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	2	All	Circular	Board to Board Cable	Header	2.2 A	Tin	Male Pin	12	UL94 V-0
Harwin Inc. M80-5220405			7.55 mm 8.05 mm	Black	29.5 µin	0.75 µm	Surface Mount	Phosphor Bronze	Gold	Push-Pull	Solder	-55 C	125 °C	800 VAC	Shrouded - 4 Wall	0.079 "	2 mm	Keying Slot Mating Flange	5.6 mm	0.22 in	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	2	All	Circular	Board to Cable/Wire	Header	2.2 A	Gold	Male Pin	4	UL94 V-0	29.5 µin	0.75 µm
Harwin Inc. M80-5220842			7.55 mm 8.05 mm	Black	29.5 µin	0.75 µm	Surface Mount	Phosphor Bronze	Gold	Push-Pull	Solder	-55 C	125 °C	800 VAC	Shrouded - 4 Wall	0.079 "	2 mm	Keying Slot Mating Flange	5.6 mm	0.22 in	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	2	All	Circular	Board to Board Cable	Header	2.2 A	Tin	Male Pin	8	UL94 V-0	0.3 µm		12 µin
Harwin Inc. M80-5221422P			7.55 mm 8.05 mm	Black	29.5 µin	0.75 µm	Surface Mount	Phosphor Bronze	Gold	Push-Pull	Solder	-55 C	125 °C	800 VAC	Shrouded - 4 Wall	0.079 "	2 mm	Keying Slot Mating Flange Pick and Place	5.6 mm	0.22 in	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	2	All	Circular	Board to Board Cable	Header	2.2 A	Tin-Lead	Male Pin	14	UL94 V-0	0.3 µm		12 µin
Harwin Inc. M80-5222642P			7.55 mm 8.05 mm	Black	29.5 µin	0.75 µm	Surface Mount	Phosphor Bronze	Gold	Push-Pull	Solder	-55 C	125 °C	800 VAC	Shrouded - 4 Wall	0.079 "	2 mm	Keying Slot Mating Flange Pick and Place	5.6 mm	0.22 in	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	2	All	Circular	Board to Board Cable	Header	2.2 A	Tin	Male Pin	26	UL94 V-0	0.3 µm		12 µin
Harwin Inc. M80-5222042	118.1 µin	3 µm	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Black	29.5 µin	0.75 µm	Surface Mount	Phosphor Bronze	Gold	Push-Pull	Solder	-55 C	125 °C	800 V	Shrouded - 4 Wall	0.079 "	2 mm	Keying Slot Mating Flange	5.6 mm	0.22 in	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	2	All	Circular	Board to Board Cable	Header	2.2 A	Tin	Male Pin	20	UL94 V-0
Harwin Inc. M80-5225022P			7.55 mm 8.05 mm	Black	29.5 µin	0.75 µm	Surface Mount	Phosphor Bronze	Gold	Push-Pull	Solder	-55 C	125 °C	800 VAC	Shrouded - 4 Wall	0.079 "	2 mm	Keying Slot Mating Flange Pick and Place	5.6 mm	0.22 in	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	2	All	Circular	Board to Board Cable	Header	2.2 A	Tin-Lead	Male Pin	50	UL94 V-0	0.3 µm		12 µin
Harwin Inc. M80-5223442			7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Black	29.5 µin	0.75 µm	Surface Mount	Phosphor Bronze	Gold	Push-Pull	Solder	-55 C	125 °C	800 V	Shrouded - 4 Wall	0.079 "	2 mm	Keying Slot Mating Flange	5.6 mm	0.22 in	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	2	All	Circular	Board to Board Cable	Header	2.2 A	Tin	Male Pin		UL94 V-0	3 Ám		118.1 Áin	29.5 Áin	0.75 Ám	34
Harwin Inc. M80-5222642	118.1 µin	3 µm	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Black	29.5 µin	0.75 µm	Surface Mount	Phosphor Bronze	Gold	Push-Pull	Solder	-55 C	125 °C	800 V	Shrouded - 4 Wall	0.079 "	2 mm	Keying Slot Mating Flange	5.6 mm	0.22 in	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	2	All	Circular	Board to Board Cable	Header	2.2 A	Tin	Male Pin	26	UL94 V-0
Harwin Inc. M80-5222042P			7.55 mm 8.05 mm	Black	29.5 µin	0.75 µm	Surface Mount	Phosphor Bronze	Gold	Push-Pull	Solder	-55 C	125 °C	800 VAC	Shrouded - 4 Wall	0.079 "	2 mm	Keying Slot Mating Flange Pick and Place	5.6 mm	0.22 in	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	2	All	Circular	Board to Board Cable	Header	2.2 A	Tin	Male Pin	20	UL94 V-0	0.3 µm		12 µin
