9L28016 Series
Manufacturer: Belden Inc.
Beta
⌘K

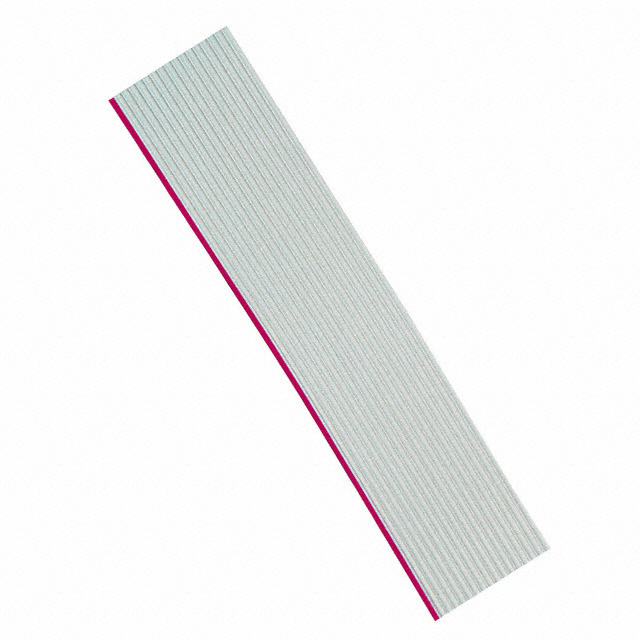

RIBBON CABLE, FLAT, UNSHIELDED, 16 CONDUCTOR, 28 AWG, 100 FT, 30.48 M
| Part | Conductor Material | Current Rating (Amps) | Insulation Resistance | First Conductor Mark | Number of Conductors | Voltage | Wire Gauge | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Shielding | Ribbon Thickness | Ribbon Thickness | Ribbon Width [custom] | Ribbon Width [custom] | Length | Length | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper | 1 A | 10 GOhm | Red | 16 | 300 VDC | 28 AWG | Poly-Vinyl Chloride (PVC) | -40 C | 105 ░C | Flat Cable | Gray | 36 AWG | 7 Strands | Unshielded | 0.89 mm | 0.035 in | 20.32 mm | 0.8 in | 100 ' | 30.48 m | 0.05 in | 1.27 mm |
