1000.3/8 Series

Catalog

CABLE GLAND 8-10.5MM 3/8" NPT

Part	Ingress Protection	Color	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [diameter]	Thread Length	Thread Length	Thread Size	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Material	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]

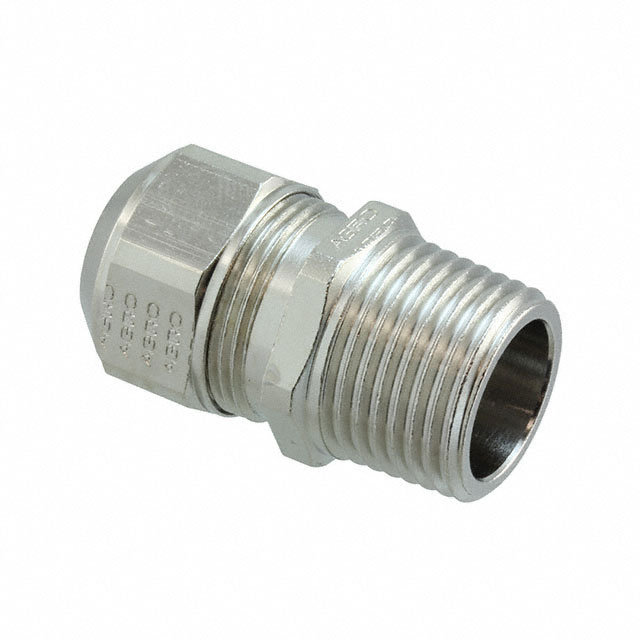

American Electrical Inc. A1000.3/8NPT.105	IP68 IP69K	Silver	0.315 in	8 mm	12 mm	0.472 in	0.375 in NPT	Seal	-40 C	100 °C	10.5 mm	0.413 in	Brass Nickel Plated	Cable Gland

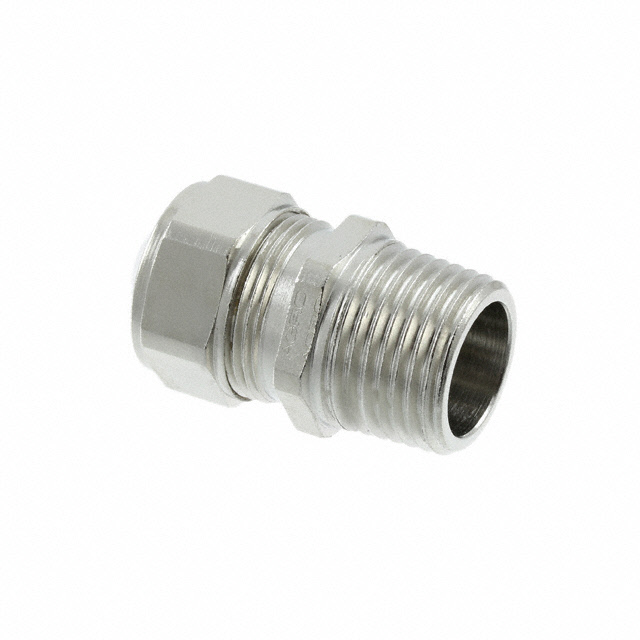

American Electrical Inc. A1000.3/8NPT.060	IP68 IP69K	Silver			12 mm	0.472 in	0.375 in NPT	Seal	-40 C	100 °C	6 mm	0.236 in	Brass Nickel Plated	Cable Gland	4.5 mm	0.177 in

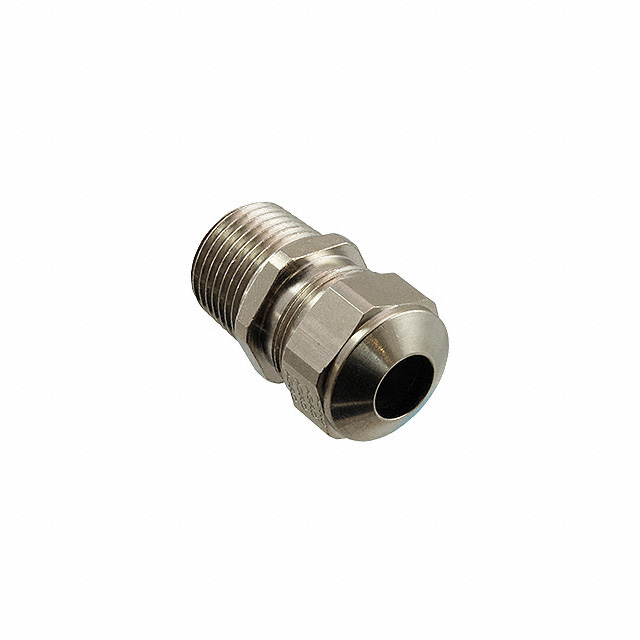

American Electrical Inc. A1000.3/8NPT.080	IP68 IP69K	Silver			12 mm	0.472 in	0.375 in NPT	Seal	-40 C	100 °C			Brass Nickel Plated	Cable Gland	6 mm	0.236 in	8 mm	0.315 in
