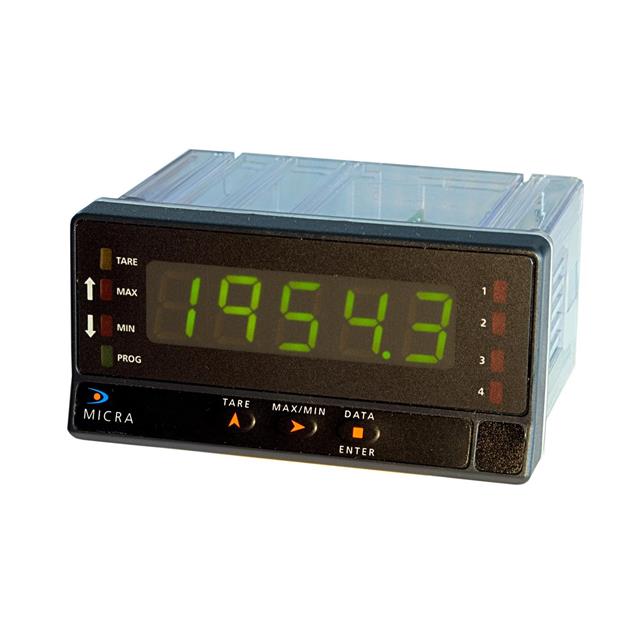

MICRA-M Series
Manufacturer: DITEL
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
PROCESS/TEMPERATURE/LOAD CELL
| Part | Display Type | Operating Temperature (Max) | Operating Temperature (Min) | Type | Measuring Range (Min) | Measuring Range (Max) | Termination Style | Relay (Count) | Output Type | Measuring Type | Number of Characters Per Row | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Display Characters - Height | Voltage - Supply (Range 2 Maximum) | Voltage - Supply (Range 2 Minimum) | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 1 Maximum) | Mounting Type | Ingress Protection IP Rating | Ingress Protection Description |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DITEL | LED - Tri-Color LED - Tri-Color Bar Graph | 60 °C | -10 °C | Temperature Meter | -150 °C | 1300 °C | Connector | 2 | Relay | RTD Thermocouple | 5 characters | 45 mm | Rectangular | 92 mm | 0.551 in | 300 VDC | 100 VAC/DC | 85 VAC | 265 VAC | Panel Mount | IP65 | Dust Tight Water Resistant |
DITEL | LED - Tri-Color LED - Tri-Color Bar Graph | 60 °C | -10 °C | Temperature Meter | -150 °C | 1300 °C | Connector | 2 | Analog Relay | RTD Thermocouple | 5 characters | 45 mm | Rectangular | 92 mm | 0.551 in | 300 VDC | 100 VAC/DC | 85 VAC | 265 VAC | Panel Mount | IP65 | Dust Tight Water Resistant |
DITEL | LED - Tri-Color LED - Tri-Color Bar Graph | 60 °C | -10 °C | Temperature Meter | -150 °C | 1300 °C | Connector | Analog | RTD Thermocouple | 5 characters | 45 mm | Rectangular | 92 mm | 0.551 in | 300 VDC | 100 VAC/DC | 85 VAC | 265 VAC | Panel Mount | IP65 | Dust Tight Water Resistant | |
DITEL | LED - Red Characters LED - Tri-Color | 60 °C | -10 °C | Temperature Meter | -150 °C | 1300 °C | Connector | 2 | Analog Relay | RTD Thermocouple | 5 characters | 45 mm | Rectangular | 92 mm | 0.551 in | 70 VDC | 10.5 VDC | 21 VAC | 53 VAC | Panel Mount | IP65 | Dust Tight Water Resistant |
DITEL | LED - Tri-Color LED - Tri-Color Bar Graph | 60 °C | -10 °C | Temperature Meter | -150 °C | 1300 °C | Connector | RTD Thermocouple | 5 characters | 45 mm | Rectangular | 92 mm | 0.551 in | 70 VDC | 10.5 VDC | 21 VAC | 53 VAC | Panel Mount | IP65 | Dust Tight Water Resistant | ||
 DITEL | LED - Tri-Color LED - Tri-Color Bar Graph | 60 °C | -10 °C | Temperature Meter | -150 °C | 1300 °C | Connector | 2 | Relay | RTD Thermocouple | 5 characters | 45 mm | Rectangular | 92 mm | 0.551 in | 70 VDC | 10.5 VDC | 21 VAC | 53 VAC | Panel Mount | IP65 | Dust Tight Water Resistant |
DITEL | LED - Tri-Color LED - Tri-Color Bar Graph | 60 °C | -10 °C | Temperature Meter | -150 °C | 1300 °C | Connector | Analog | RTD Thermocouple | 5 characters | 45 mm | Rectangular | 92 mm | 0.551 in | 70 VDC | 10.5 VDC | 21 VAC | 53 VAC | Panel Mount | IP65 | Dust Tight Water Resistant |
