RI-70GP Series
Manufacturer: Comus International
Beta
⌘K

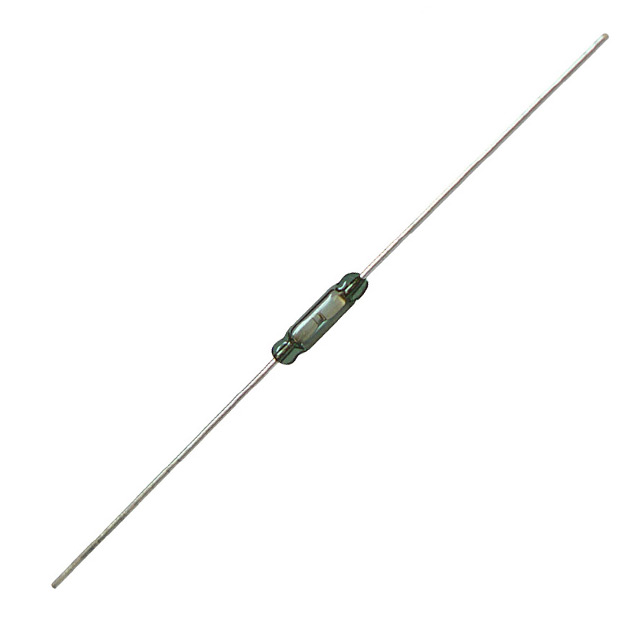

SWITCH REED SPST-NO 500MA 120V
| Part | Circuit | Current - Carry | Current - Switching | Operate Range [Max] | Operate Range [Min] | Capacitance | Termination Style | Mounting Type | Voltage - Switching AC | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Switching DC | Type | Release Time | Size - Body [x] | Size - Body [diameter] | Size - Body [x] | Size - Body [diameter] | Power - Rated | Length - Overall [x] | Length - Overall [x] | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Comus International | SPST-NO | 400 mA | 500 mA | 10 AT | 7 | 0.35 pF | Axial | Through Hole | 120 V | -55 C | 125 °C | 170 V | Glass Body Reed | 0.03 ms | 7 mm | 0.071 " | 0.276 " | 1.8 mm | 10 W | 1.811 in | 46 mm | 0.15 ms |
Comus International | SPST-NO | 400 mA | 500 mA | 15 | 10 | 0.35 pF | Axial | Through Hole | 120 V | -55 C | 125 °C | 170 V | Glass Body Reed | 0.03 ms | 7 mm | 0.071 " | 0.276 " | 1.8 mm | 10 W | 1.811 in | 46 mm | 0.15 ms |
