CX06S Series

Catalog

CONFIG POWER CHASSIS 600W 4 SLOT

Part	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Type	Height	Height	Number of Positions	Input Connector	Size / Dimension	Size / Dimension	Power (Watts)	Cooling Type	Features	Current - Leakage	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Features

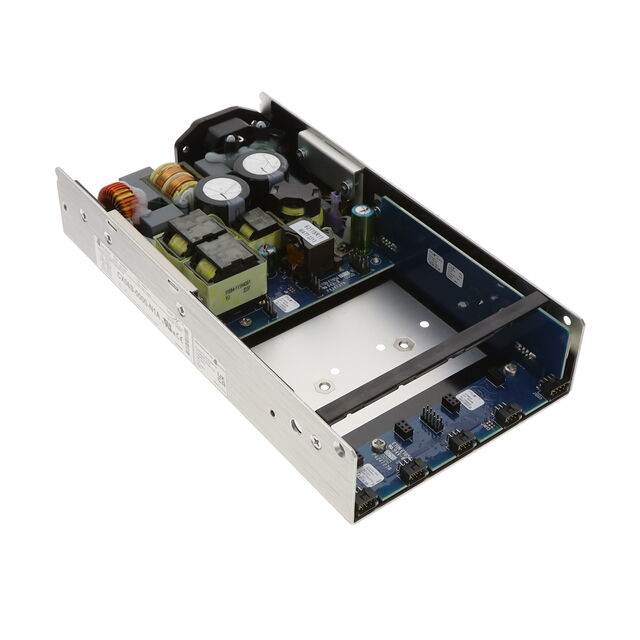

EXCELSYS / Advanced Energy CX06S-0000-N1A	CE	85 VAC 120 VDC	264 VAC 300 V	Medical	38.1 mm	1.5 in	4	IEC 320-C14	114.3 mm 215.9 mm	4.5 in 8.5 in	600 W	Convection	1.96 A 12 V	393 µA	4000 V	-40 °C	85 °C	94 %
EXCELSYS / Advanced Energy CX06S-0000-S-B	CE	85 VAC 120 VDC	264 VAC 300 V	Medical	38.1 mm	1.5 in	4	Screw Terminal	114.3 mm 215.9 mm	4.5 in 8.5 in	600 W	Convection	4.7 A 5 VDC	393 µA	4000 V	-40 °C	85 °C	94 %	Conformal Coating Ruggedized

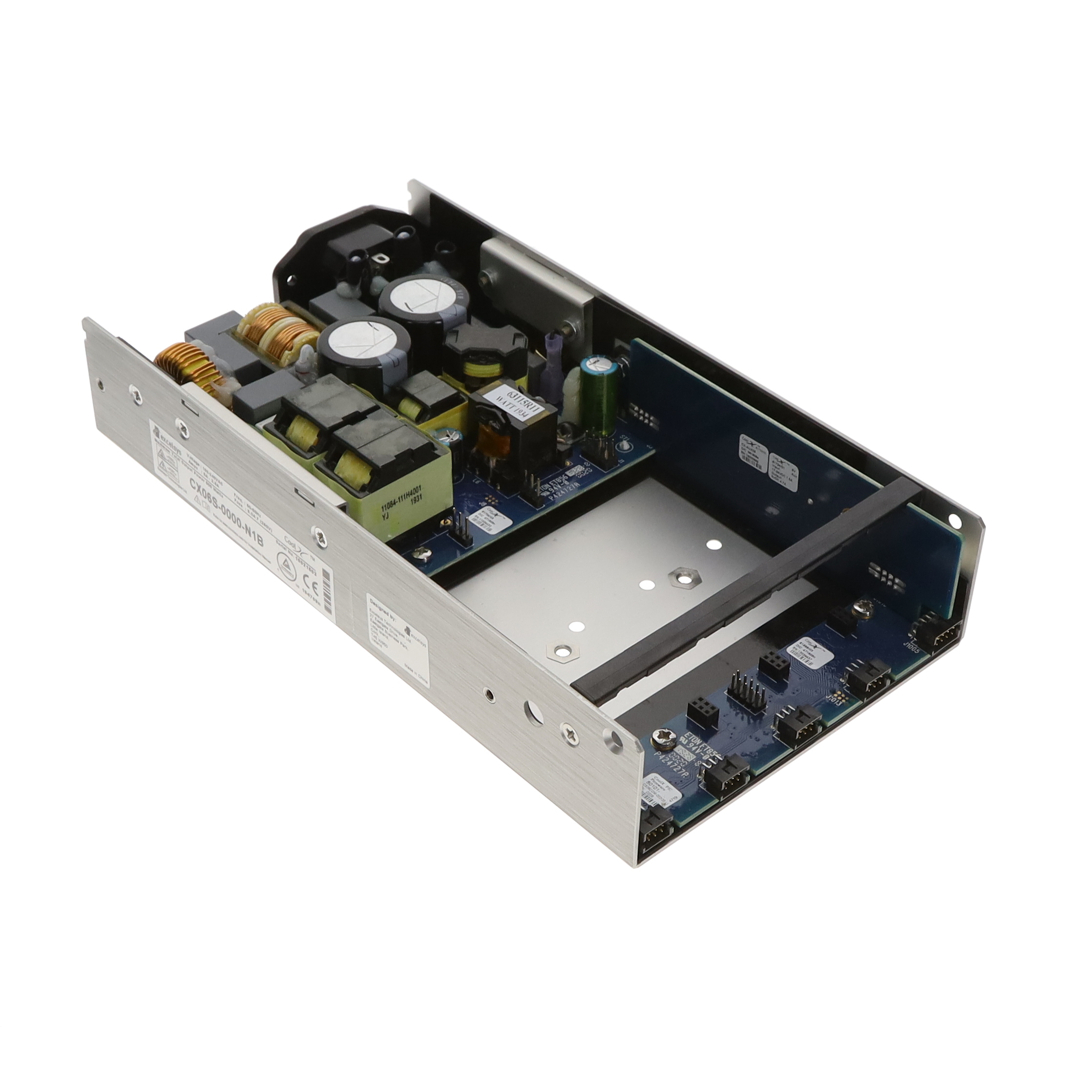

EXCELSYS / Advanced Energy CX06S-0000-N1B	CE	85 VAC 120 VDC	264 VAC 300 V	Medical	38.1 mm	1.5 in	4	IEC 320-C14	114.3 mm 215.9 mm	4.5 in 8.5 in	600 W	Convection	4.7 A 5 V	393 µA	4000 V	-40 °C	85 °C	94 %
