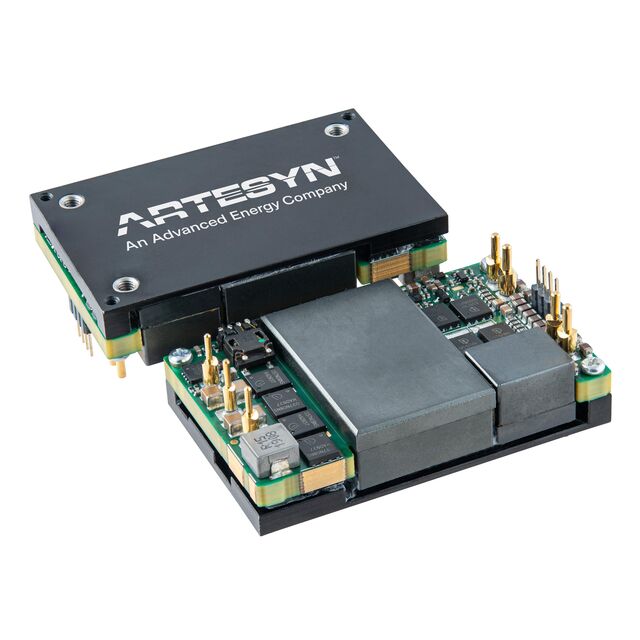

BCQ1300 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1300W, 40 - 60VIN, 12VA.90A, QUARTER BRICK BASEPLATE, NEGATIVE LOGIC, PIN LENGTH: 4.6MM
| Part | Number of Outputs | Approval Agency | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Efficiency | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Voltage - Input (Max) [Max] | Features | Power (Watts) | Type | Supplier Device Package | Voltage - Isolation | Current - Output (Max) [Max] | Control Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Package / Case | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 1 | CE TUV UL | ITE (Commercial) | 1.45 in | 14.5 mm | 58.4 mm | 36.8 mm | 2.3 in | 0.57 " | 97.7 % | 14.5 V | 9.6 V | 60 V | Adjustable Output Baseplate Remote On/Off | 1305 W | Isolated Module | Quarter Brick | 1.5 kV | 90 A | Active Low Enable | 85 °C | -40 C | 40 V | Quarter Brick | Through Hole |
