TR160M Series

Desktop AC Adapters Medical 160W Class A 24V 6.66A 2.1mm

Manufacturer: Cincon Electronics Co. LTD

Catalog

Desktop AC Adapters Medical 160W Class A 24V 6.66A 2.1mm

Catalog

Desktop AC Adapters Medical 160W Class A 24V 6.66A 2.1mm

Part	Polarization	Input Type	Standard Number	Efficiency	Form	Region Utilized	No Load Power Consumption	Approval Agency	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Input Connector	Current - Output (Max) [Max]	Output Connector [diameter]

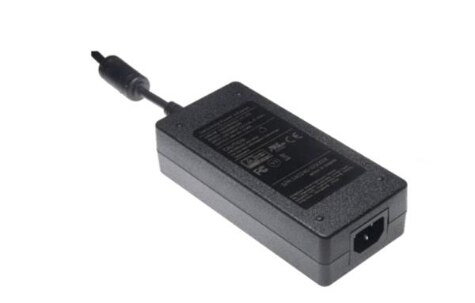

Cincon Electronics Co. LTD TR160MA240-01E12 VI	Positive Center	Cord (Sold Separately)	60335-1 60601-1	CoC Tier 2 Level VI	Desktop (Class I)	International	150 mW	CE cURus FCC TUV UL	2.1 mm	5.5 mm	Barrel Plug	12 mm	Household Appliances Medical	-20 ░C	70 °C	24 V	80 VAC	264 VAC	1.22 m	48 in	160 W	70 mm	5.91 in	1.5 in	150 mm	2.76 "	38 mm	IEC 320-C14	6.66 A
Cincon Electronics Co. LTD TR160MB240-12E12 VI	Positive Center	Cord (Sold Separately)	60601-1	CoC Tier 2 Level VI	Desktop (Class II)	International	150 mW	CE cURus FCC TUV UKCA			Barrel Plug	12 mm	Medical	-20 ░C	70 °C	24 V	80 VAC	264 VAC	1.22 m	48 in	160 W	70 mm	5.91 in	1.5 in	150 mm	2.76 "	38 mm	IEC 320-C8	6.66 A	2.5 mm 5.5 mm

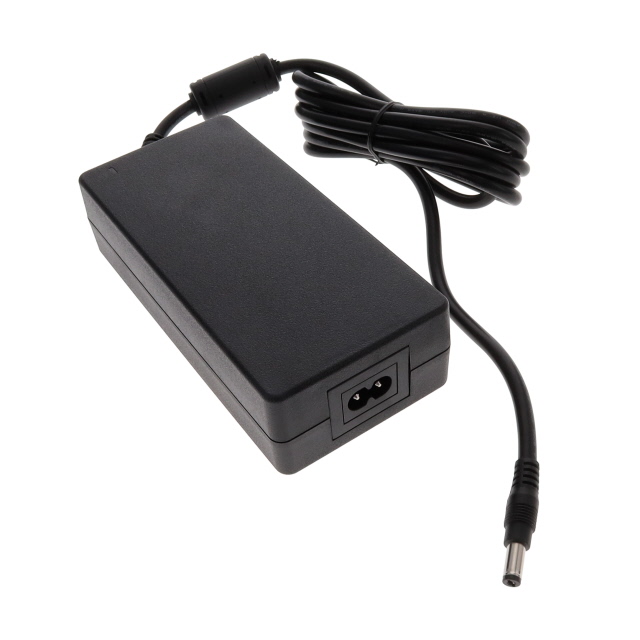

Cincon Electronics Co. LTD TR160MB360-11E13 VI	Positive Center	Cord (Sold Separately)	60335-1 60601-1	CoC Tier 2 Level VI	Desktop (Class II)	International	150 mW	CE cURus FCC TUV UL	2.5 mm	5.5 mm	Barrel Plug	12 mm	Household Appliances Medical	-20 ░C	70 °C	36 V	80 VAC	264 VAC	1.8 m	70.9 "	160 W	70 mm	5.91 in	1.5 in	150 mm	2.76 "	38 mm	IEC 320-C8	4.44 A
Cincon Electronics Co. LTD TR160MB480-11E13 VI	Positive Center	Cord (Sold Separately)	60335-1 60601-1	CoC Tier 2 Level VI	Desktop (Class II)	International	150 mW	CE cURus FCC TUV UL	2.1 mm 2.5 mm	5.5 mm	Barrel Plug	12 mm	Household Appliances Medical	-20 ░C	70 °C	48 V	80 VAC	264 VAC	1.8 m	70.9 "	160 W	70 mm	5.91 in	1.5 in	150 mm	2.76 "	38 mm	IEC 320-C8	3.33 A
Cincon Electronics Co. LTD TR160MA480-11E13 VI	Positive Center	Cord (Sold Separately)	60335-1 60601-1	CoC Tier 2 Level VI	Desktop (Class I)	International	150 mW	CE cURus FCC TUV UL	2.5 mm	5.5 mm	Barrel Plug	12 mm	Household Appliances Medical	-20 ░C	70 °C	48 V	80 VAC	264 VAC	1.8 m	70.9 "	160 W	70 mm	5.91 in	1.5 in	150 mm	2.76 "	38 mm	IEC 320-C14	3.33 A
Cincon Electronics Co. LTD TR160MB240-01E12 VI	Positive Center	Cord (Sold Separately)	60335-1 60601-1	CoC Tier 2 Level VI	Desktop (Class II)	International	150 mW	CE cURus FCC TUV UL	2.1 mm	5.5 mm	Barrel Plug	12 mm	Household Appliances Medical	-20 ░C	70 °C	24 V	80 VAC	264 VAC	1.22 m	48 in	160 W	70 mm	5.91 in	1.5 in	150 mm	2.76 "	38 mm	IEC 320-C8	6.66 A
Cincon Electronics Co. LTD TR160MA480-12E13 VI	Positive Center	Cord (Sold Separately)	60601-1	CoC Tier 2 Level VI	Desktop (Class I)	International	150 mW	CE cURus FCC TUV UKCA			Barrel Plug	12 mm	Medical	-20 ░C	70 °C	48 V	80 VAC	264 VAC	1.8 m	70.8 in	160 W	70 mm	5.91 in	1.5 in	150 mm	2.76 "	38 mm	IEC 320-C14	3.33 A	2.5 mm 5.5 mm
Cincon Electronics Co. LTD TR160MA240-12E12 VI	Positive Center	Cord (Sold Separately)	60601-1	CoC Tier 2 Level VI	Desktop (Class I)	International	150 mW	CE cURus FCC TUV UKCA			Barrel Plug	12 mm	Medical	-20 ░C	70 °C	24 V	80 VAC	264 VAC	1.22 m	48 in	160 W	70 mm	5.91 in	1.5 in	150 mm	2.76 "	38 mm	IEC 320-C14	6.66 A	2.5 mm 5.5 mm

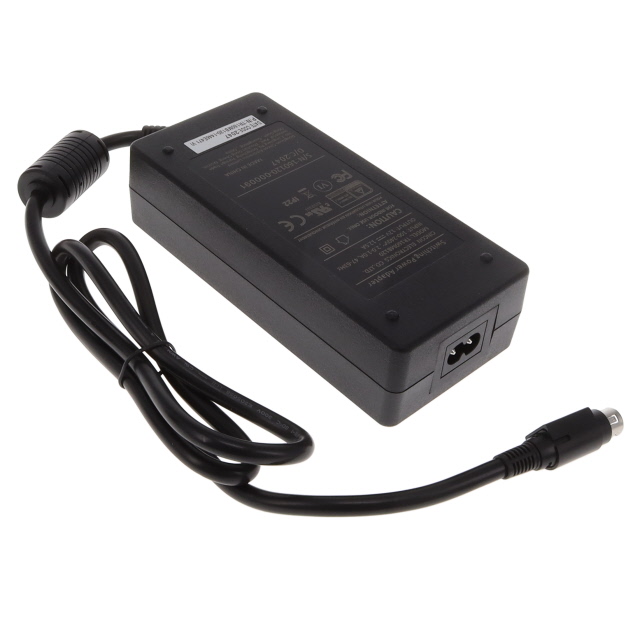

Cincon Electronics Co. LTD TR160MB120-1446E471 VI		Cord (Sold Separately)	60335-1 60601-1	CoC Tier 2 Level VI	Desktop (Class II)	International	150 mW	CE cURus FCC TUV UL			Power DIN 4 Pin		Household Appliances Medical	-20 ░C	70 °C	12 V	80 VAC	264 VAC	0.95 m	37.4 in	150 W	70 mm	5.91 in	1.5 in	150 mm	2.76 "	38 mm	IEC 320-C8	12.5 A
Cincon Electronics Co. LTD TR160MA360-12E13 VI	Positive Center	Cord (Sold Separately)	60601-1	CoC Tier 2 Level VI	Desktop (Class I)	International	150 mW	CE cURus FCC TUV UKCA			Barrel Plug	12 mm	Medical	-20 ░C	70 °C	36 V	80 VAC	264 VAC	1.8 m	70.8 in	160 W	70 mm	5.91 in	1.5 in	150 mm	2.76 "	38 mm	IEC 320-C14	4.44 A	2.5 mm 5.5 mm
